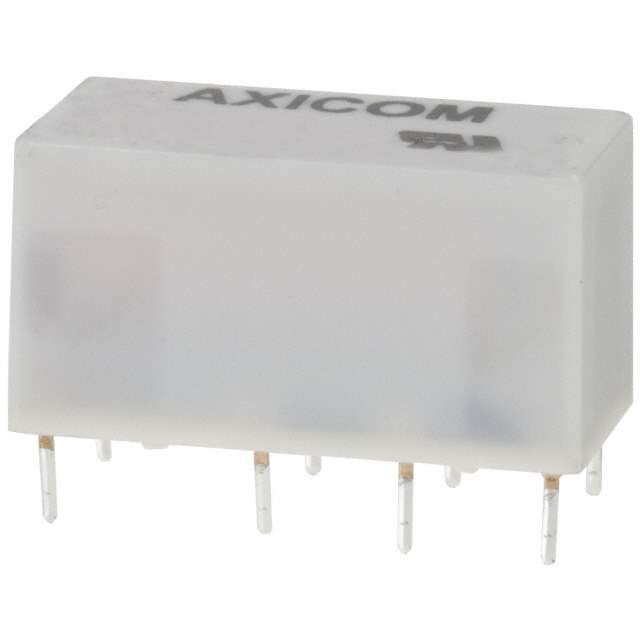

V23105A5477A201 Real Image
Same model may have multiple batches, images only for reference.

V23105A5477A201

Part No V23105A5477A201
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY TELECOM DPDT 3A 24V / Telecom Relay DPDT (2 Form C) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series V23105, AXICOM
Package Tube
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 23 mA
Coil Type Non Latching
Termination Style PC Pin
Operate Time 6 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type Telecom
Coil Resistance 1.05 kOhms
Base Product Number V23105
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names 1-1393793-4,1-1393793-4-ND,V23105A5477A201-ND,PB1633,113937934
Standard Package 25
Win Source Part Number 1038791-V23105A5477A201
Ultra Librarian 3D Model Ultra Librarian V23105A5477A201 CAD Model

Description

The 1038791-V23105A5477A201 is a relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Relay Type: DPDT (2 Form C)
  • Contact Rating (Current): 3 A
  • Switching Voltage: 250VAC, 220VDC - Max
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.05 kOhms
  • Operate Time: 6 ms
  • Release Time: 4 ms
  • Coil Type: Non-Latching
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 85°C
