Same model may have multiple batches, images only for reference.

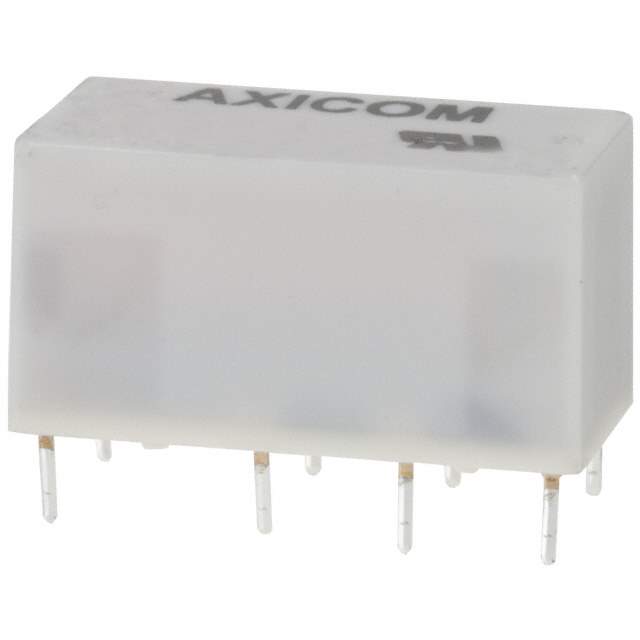

V23105A5307A201 Real Image
Same model may have multiple batches, images only for reference.

V23105A5307A201

Part No V23105A5307A201
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description The Best Relaytion | RELAY TELECOM DPDT 3A 48V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube
Mounting Style Through Hole
Coil Voltage 48VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 3A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 4.2mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 33.6 VDC
Must Release Voltage 2.4 VDC
Operate Time 6ms
Release Time 4ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type Telecom
Coil Resistance 11.52 kOhms
Manufacturer Pack Quantity 25
MSL Level Not Applicable
Win Source Part Number 1278831-V23105A5307A201
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Communications & Networking, Test & Measurement, Medical, Consumer Electronics, Automation & Process Control
Ultra Librarian 3D Model Ultra Librarian V23105A5307A201 CAD Model

Description

This TE Connectivity Potter & Brumfield Relay is a DPDT (2 Form C) telecom relay with a non-latching coil type and a maximum switching voltage of 250VAC/220VDC.

  • Coil Resistance: 11.52 kOhms
  • Coil Current: 4.2mA
  • Operate Time: 6ms
  • Release Time: 4ms
  • Applications: Communications and networking, test and measurement, medical, consumer electronics, and automation and process control
  • Manufacturer Pack Quantity: 25
  • Operating Temperature: -40°C to 85°C
