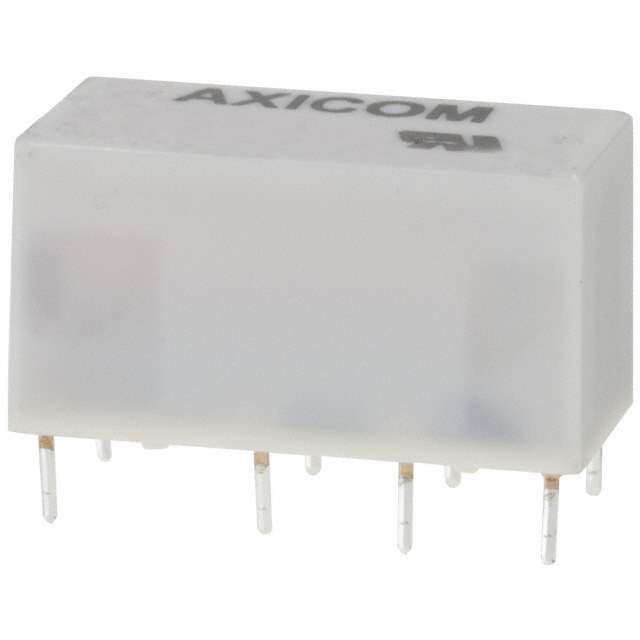

V23105A5301A201 Real Image
Same model may have multiple batches, images only for reference.

V23105A5301A201

Part No V23105A5301A201
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series V23105, AXICOM
Package Box
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 3 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 40 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.25 VDC
Operate Time 6 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type Telecom
Coil Resistance 125 Ohms
Base Product Number V23105
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1314800-V23105A5301A201
Ultra Librarian 3D Model Ultra Librarian V23105A5301A201 CAD Model

Description

The V23105A5301A201 is a DPDT (2 Form C) relay electronic component that belongs to the Power Relays, Over 2 Amps category.

  • Category: Power Relays, Over 2 Amps
  • Series: V23105
  • Contact Arrangement: DPDT (2 Form C)
  • Coil Voltage: 5VDC
  • Coil Resistance: 125 Ohms
  • Contact Rating: 3A
  • Switching Voltage: 250VAC and 220VDC
  • Operating Temperature: -40°C ~ 85°C
  • Manufacturer: TE Connectivity Potter & Brumfield Relays
