Same model may have multiple batches, images only for reference.

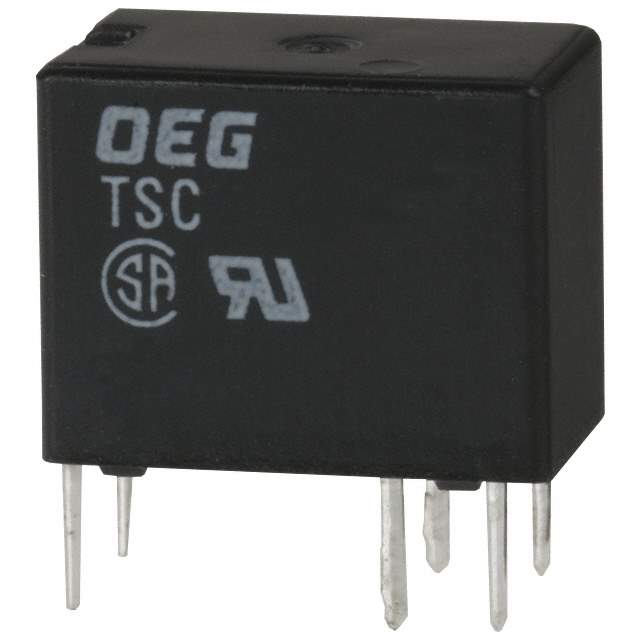

TSC-124D3H Real Image
Same model may have multiple batches, images only for reference.

TSC-124D3H

Part No TSC-124D3H
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM SPDT 1A 24V
Datasheet
TSC-124D3H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 12.5mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 1A
Switching Voltage 120VAC, 30VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 5ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 300 mW
Coil Resistance 1.92 kOhms
Temperature Range - Operating -30°C to 80°C
Win Source Part Number 213531-TSC-124D3H
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSC-124D3H CAD Model

Description

The TE Connectivity Potter & Brumfield Relays TSC-124D3H is a high-performance relay that is designed to switch high currents and voltages.

  • Manufacturer: TE Connectivity Potter & Brumfield Relays
  • Product Name: TSC-124D3H
  • Type: sealed, fully-featured SPDT relay
  • Coil Voltage: 24VDC
  • Contact Rating: 1A
  • Switching Voltage: 120VAC and 30VDC
  • Turn on Voltage: 18VDC
  • Release Time: 5ms
  • Coil Power: 300mW
  • Operating Temperature Range: -30°C to 80°C
