Same model may have multiple batches, images only for reference.

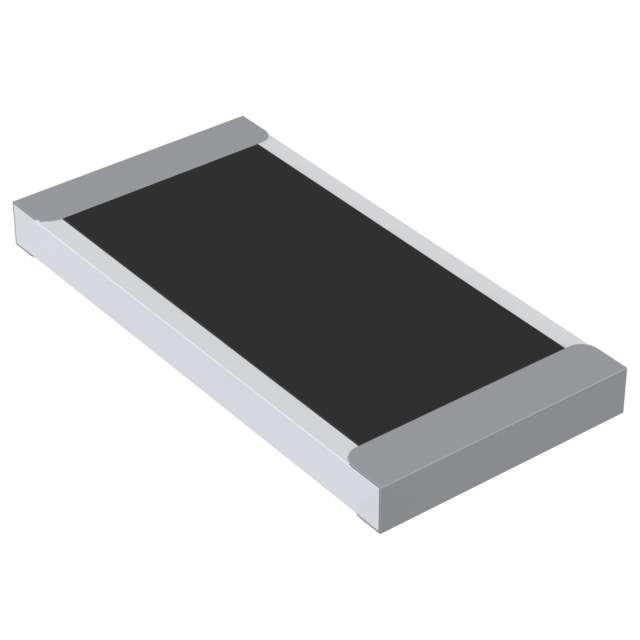

TLR3A10WR033FTDG Real Image
Same model may have multiple batches, images only for reference.

TLR3A10WR033FTDG

Part No TLR3A10WR033FTDG
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 0.033 OHM 1% 1W 2512 / 33 mOhms ±1% 1W Chip Resistor 2512 (6432 Metric) Current Sense Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series TLR, CGS
Package Tape & Reel
Product Status Obsolete
Resistance 33 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Foil
Features Current Sense
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Size / Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Base Product Number TLR3A10
Standard Package 4,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1350899-TLR3A10WR033FTDG
Ultra Librarian 3D Model Ultra Librarian TLR3A10WR033FTDG CAD Model

Description

The TLR, CGS series is a metal foil chip resistor with a resistance of 33 mOhms and a power rating of 1W.

  • Package / Case: 2512 (6432 Metric)
  • Number of Terminations: 2
  • Packaging: Tape & Reel (TR)
  • Resistance: 33 mOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Product: Current Sense Resistors
  • Series: TLR, CGS
  • Power Rating: 1W
  • Termination Style: SMD/SMT
  • Technology: Metal Foil
  • Operating Temperature Range: -55°C to 170°C
  • Manufacturer: TE Connectivity Passive Product
  • Mounting Style: Surface Mount
