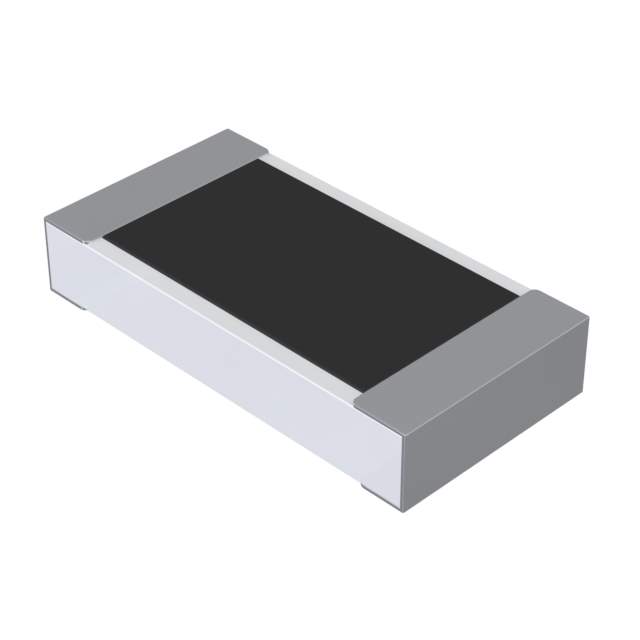

TLR2B10DR001FTDG Real Image
Same model may have multiple batches, images only for reference.

TLR2B10DR001FTDG

Part No TLR2B10DR001FTDG
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 0.001 OHM 1% 1W 1206 / 1 mOhms ±1% 1W Chip Resistor 1206 (3216 Metric) Current Sense Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series TLR, CGS
Package Tape & Reel
Resistance 1 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Foil
Features Current Sense
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Base Product Number TLR2B10
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1339590-TLR2B10DR001FTDG
Ultra Librarian 3D Model Ultra Librarian TLR2B10DR001FTDG CAD Model

Description

The TLR2B10DR001FTDG is a chip resistor designed for use in current sensing applications.

  • Resistance: 1 mOhms
  • Tolerance: ±1%
  • Composition: Metal Foil
  • Package / Case: 1206 (3216 Metric)
  • Power (Watts): 1W
  • Temperature Coefficient: ±50ppm/°C
  • Operating Temperature: -55°C ~ 170°C
  • Failure Rate: -
  • Series: TLR, CGS
  • Packaging: Tape & Reel (TR)
  • Standard Package: 2,000
