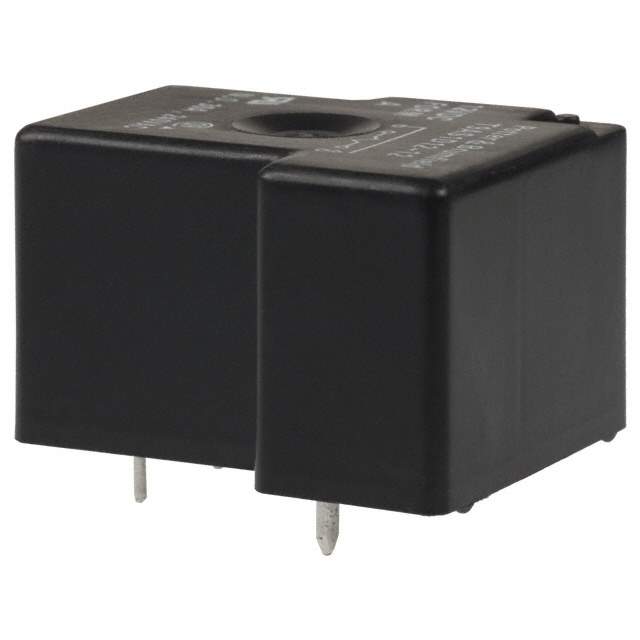

T9AS1D12-15 Real Image
Same model may have multiple batches, images only for reference.

T9AS1D12-15

Part No T9AS1D12-15
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 15V
Datasheet
T9AS1D12-15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 66.7mA
Coil Voltage 15VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30A
Switching Voltage 277VAC - Max
Turn On Voltage (Max) 11.25 VDC
Turn Off Voltage (Min) 1.5 VDC
Operate Time 15ms
Release Time 15ms
Features Insulation - Class F, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 1 W
Coil Resistance 225 Ohms
Temperature Range - Operating -55°C to 85°C
Win Source Part Number 037518-T9AS1D12-15
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian T9AS1D12-15 CAD Model

Description

The T9AS1D12-15 is a general-purpose through-hole relay from TE Connectivity Potter & Brumfield Relays.

  • Contact Form: Single-Pole Single-Throw (SPST-NO)
  • Contact Rating: 30A
  • Coil Voltage: 15VDC
  • Coil Resistance: 225 Ohms
  • Insulation: Class F
  • Sealed: Fully Sealed
  • Coil Type: Non-Latching
  • Coil Current: 66.7mA
  • Operate Time: 15ms
  • Release Time: 15ms
  • Switching Voltage: 277VAC - Max
  • Turn-On Voltage (Max): 11.25VDC
  • Turn-Off Voltage (Min): 1.5VDC
  • Coil Power: 1W
  • Applications: Widely used in various applications such as home appliances, HVAC, and industrial control systems
