Same model may have multiple batches, images only for reference.

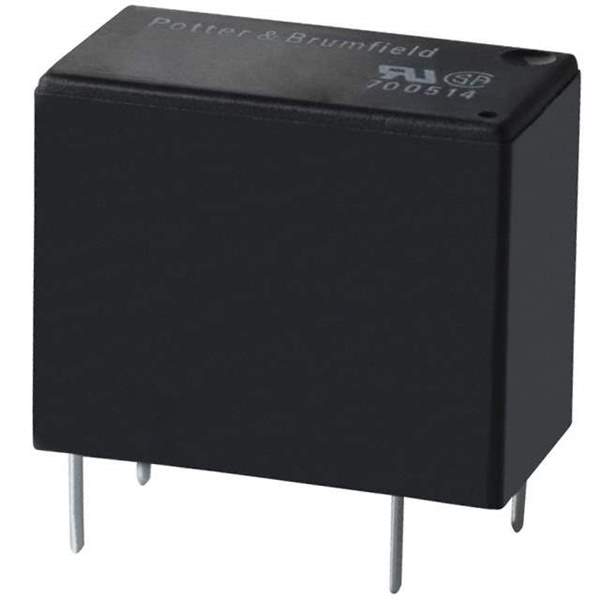

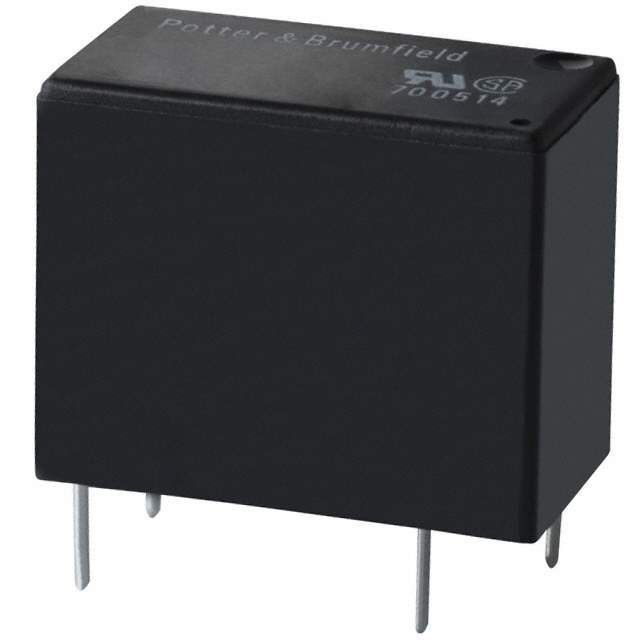

T77S1D10-12 Real Image
Same model may have multiple batches, images only for reference.

T77S1D10-12

Part No T77S1D10-12
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description General Purpose Relays PCB Relays | RELAY GEN PURPOSE SPST 10A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Mounting Style Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 37.5mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 10ms
Release Time 4ms
Temperature Range - Operating -30°C ~ 85°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 320 Ohms
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1263520-T77S1D10-12
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in HVAC, Industrial, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian T77S1D10-12 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays 1263520-T77S1D10-12 is a general-purpose relay that is used in HVAC, industrial, and consumer electronics.

  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: silver cadmium oxide (AgCdO)
  • Coil Voltage: 12VDC
  • Status: limited
  • Manufacturer Pack Quantity: 100
  • MSL: 1 (unlimited)
  • Must Operate Voltage: 9 VDC
