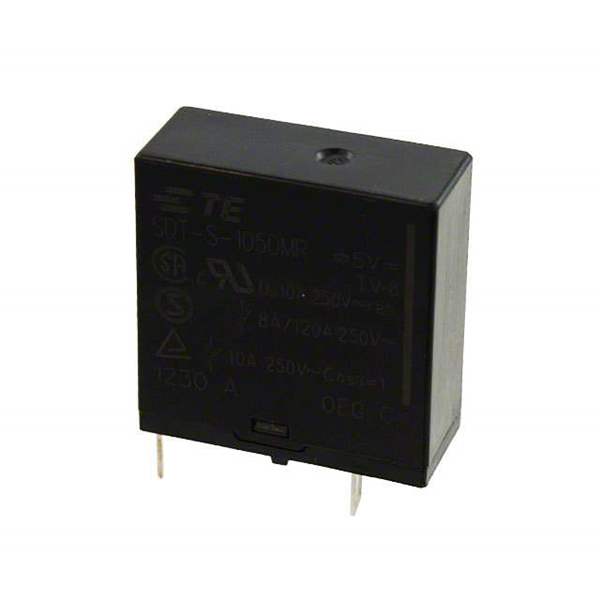

SDT-S-124LMR TE Connectivity
Same model may have multiple batches, images only for reference.

SDT-S-124LMR

Part No SDT-S-124LMR
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 24V
Datasheet
SDT-S-124LMR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 10.4mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 15ms
Release Time 5ms
Features Insulation - Class E
Mounting Through Hole
Termination Style PC Pin
Coil Power 250 mW
Coil Resistance 2.3 kOhms
Temperature Range - Operating -30°C to 70°C
Win Source Part Number 211558-SDT-S-124LMR
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SDT-S-124LMR CAD Model

Description

The TE Connectivity Potter & Brumfield Relays 211558-SDT-S-124LMR general-purpose relay is a through-hole component that features SPST-NO (1 Form A) contact form and PC pin termination style.

  • Contact Form: SPST-NO (1 Form A)
  • Termination Style: PC pin
  • Coil Resistance: 2.3 kOhms
  • Coil Current: 10.4mA
  • Operate Time: 15ms
  • Release Time: 5ms
  • Relay Type: Non-latching
  • Coil Voltage: 24VDC
  • Contact Rating: 5A
  • Switching Voltage: 250VAC or 30VDC max
  • Turn-On Voltage: 18VDC
  • Turn-Off Voltage: 2.4VDC
  • Coil Power: 250mW
  • Temperature Range: -30°C to 70°C
  • Supply and Demand Status: Limited
