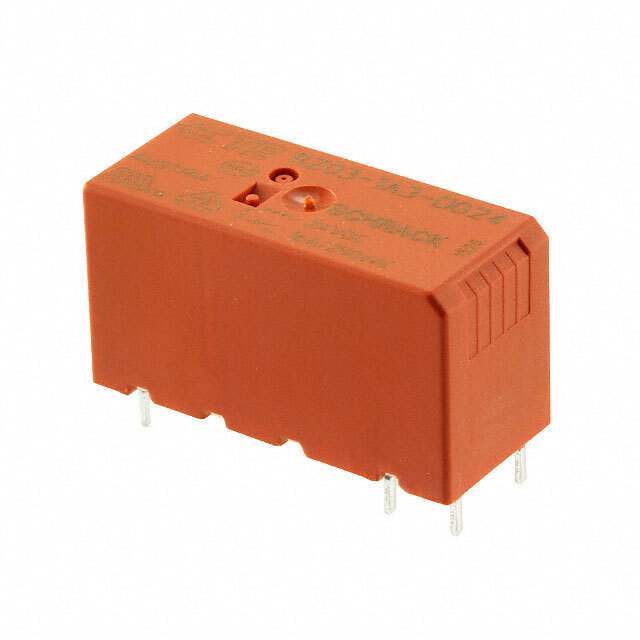

Same model may have multiple batches, images only for reference.
RZ03-1A4-D005 TE Connectivity Potter & Brumfield Relays
Same model may have multiple batches, images only for reference.

RZ03-1A4-D005

Part No RZ03-1A4-D005
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203014-RZ03-1A4-D005
Manufacturer TE Connectivity Potter & Brumfield Relays
Category Relays-Power Relays, Over 2 Amps
Series RZ, SCHRACK
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Operating Temperature -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Ultra Librarian 3D Model Ultra Librarian RZ03-1A4-D005 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays RZ and SCHRACK series power relay is a single pole, single throw (SPST-NO) relay with a contact form of 1 Form A.

  • Contact Form: SPST-NO (1 Form A)
  • Coil Voltage: 5VDC
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Contact Material: Silver Nickel (AgNi)
  • Product Status: Active
