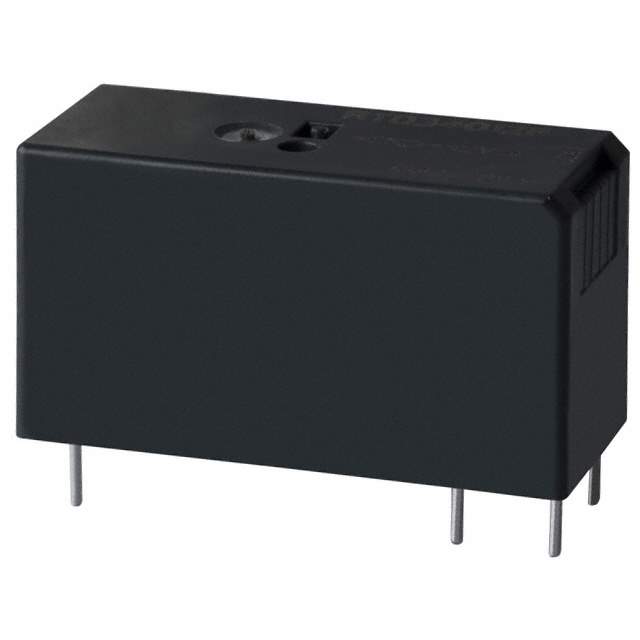

RTD34024F Real Image
Same model may have multiple batches, images only for reference.

RTD34024F

Part No RTD34024F
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V
Datasheet
RTD34024F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 16.7mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 16.8 VDC
Turn Off Voltage (Min) 2.4 VDC
Operate Time 8ms
Release Time 6ms
Features Insulation - Class F, Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 1.44 kOhms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 134507-RTD34024F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RTD34024F CAD Model

Description

The TE Connectivity Potter & Brumfield Relay is a general-purpose relay that is perfect for a variety of applications.

  • With insulation class F and fully sealed, this relay is designed to withstand harsh environments.
  • It has a single pole, single throw (SPST) contact form with a maximum switching voltage of 400VAC and a contact rating of 16A.
  • The coil voltage is 24VDC with a coil resistance of 1.44 kOhms and a coil current of 16.7mA.
  • The operate time of the relay is 8ms and the release time is 6ms.
  • This relay is mounted through the hole and is available in tube/rail packaging.
  • The TE Connectivity Potter & Brumfield Relay is a reliable and durable choice for your relay needs.
