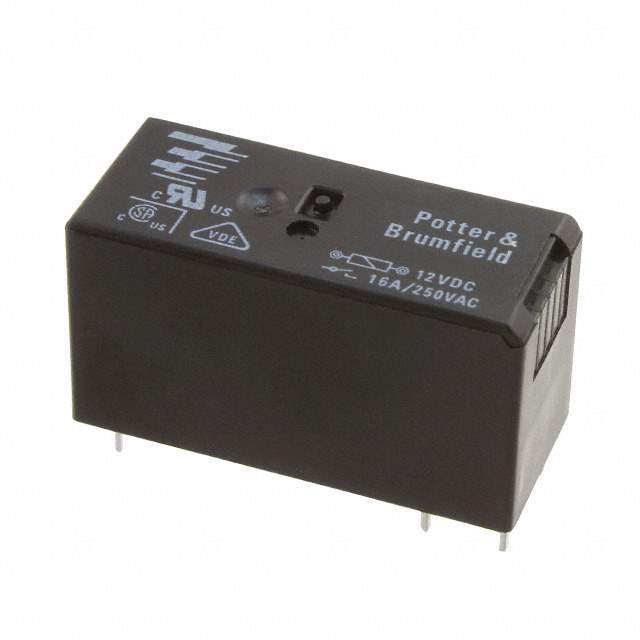

RT334012F Real Image
Same model may have multiple batches, images only for reference.

RT334012F

Part No RT334012F
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V
Datasheet
RT334012F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 33.3mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 8ms
Release Time 6ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 400 mW
Coil Resistance 360 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 046416-RT334012F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RT334012F CAD Model

Description

This electronic component is a relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Win Source Part Number: 046416-RT334012F
  • Packaging: Tube/rail
  • Termination Style: PC pin
  • Features: Insulation - class F and sealed - flux protection
  • Contact Form: SPST-NO (1 Form A)
  • Mounting: Through hole
  • Coil Resistance: 360 Ohms
  • Coil Current: 33.3mA
  • Operate Time: 8ms
  • Relay Type: General purpose
  • Coil Type: Non-latching
  • Coil Voltage: 12VDC
  • Contact Rating (current): 16A
  • Switching Voltage: 400VAC - Max
  • Turn on Voltage (Max): 8.4 VDC
  • Turn off Voltage (Min): 1.2 VDC
  • Release Time: 6ms
  • Coil Power: 400 mW
  • Category: Relays
  • Popularity: Medium
