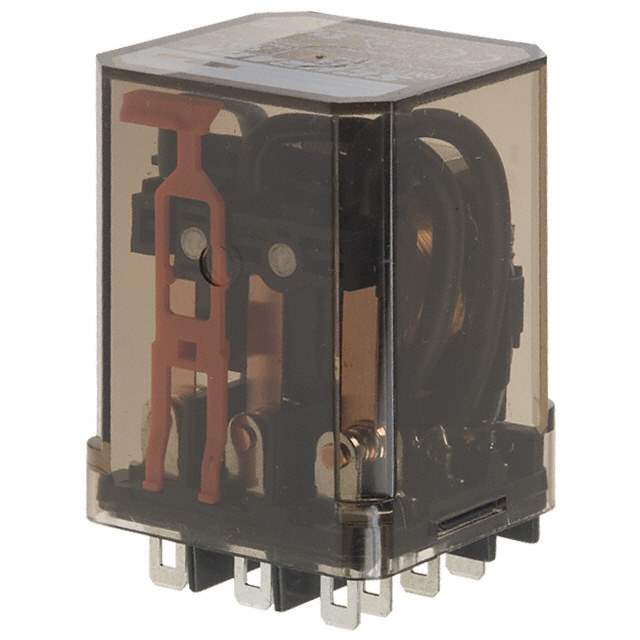

The TE Connectivity Potter & Brumfield Relays 1092429-RM732024 is a 3PDT (3 Form C) general-purpose relay that operates in a temperature range of -45°C to 60°C.

• Relay Type: General Purpose
• Contact Form: 3PDT (3 Form C)
• Temperature Range: -45°C to 60°C
• Mounting Type: Socketable
• Coil Voltage: 24VDC
• Coil Resistance: 345 Ohms
• Coil Current: 70.8mA
• Switching Voltage: 440VAC - Max
• Contact Rating (Current): 16A
• Termination Style: Plug-In, Quick Connect - 0.187" (4.7mm)
• Features: Mechanical Indicator and Test Button
• Operate Time: 15ms
• Release Time: 10ms
• Turn On Voltage (Max): 18 VDC
• Turn-Off Voltage (Min): 2.4 VDC
• Coil Power: 1.
