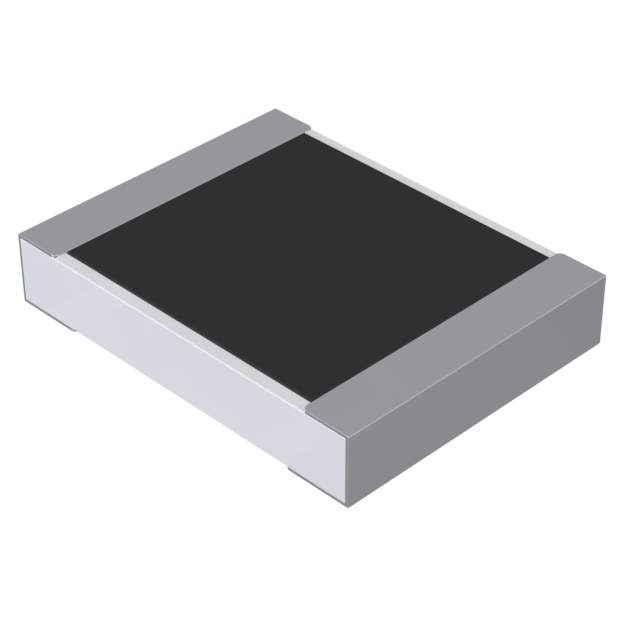

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series RL73, CGS
Package Tape & Reel
Resistance 100 mOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features Current Sense
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Size / Dimension 0.122" L x 0.098" W (3.10mm x 2.50mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Base Product Number RL73H2
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1341428-RL73H2ER10FTDF
Ultra Librarian 3D Model Ultra Librarian RL73H2ER10FTDF CAD Model

Description

The RL73H2ER10FTDF from TE Connectivity Passive Product is a chip resistor that belongs to the surface mount chip resistor category.

  • Product Category: Surface Mount Chip Resistor
  • Package: Tape and Reel
  • Standard Package: 1,000
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Composition: Thick Film
  • Terminations: 2
  • Resistance: 100 mOhms
  • Package / Case: 1210 (3225 Metric)
  • Supplier Device Package: 1210
  • Operating Temperature: -55°C to 155°C
  • ECCN: EAR99.21.0030
  • Base Product Number: RL73H2
