Same model may have multiple batches, images only for reference.

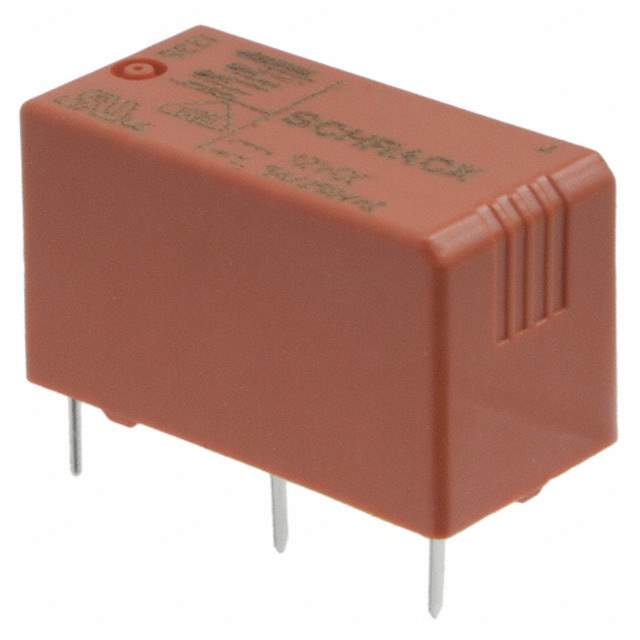

REL30012 Real Image
Same model may have multiple batches, images only for reference.

REL30012

Part No REL30012
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 6A 12V
Datasheet
REL30012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 30mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 6A
Switching Voltage 400VAC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 5ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 360 mW
Coil Resistance 400 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 046156-REL30012
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian REL30012 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays 046156-REL30012 is a general-purpose relay that has a SPST-NO (1 Form A) contact form.

  • Contact Form: SPST-NO (1 Form A)
  • Mounting Type: through-hole
  • Coil Voltage: 12VDC
  • Coil Resistance: 400 Ohms
  • Coil Current: 30mA
  • Contact Rating: 6A
  • Switching Voltage: 400VAC - Max
  • Operate Time: 10ms
  • Release Time: 5ms
  • Protection Feature: sealed - flux protection
  • Packaging: tube/rail
  • Temperature Range: from -40°C to 85°C
  • Market Popularity: medium
  • Supply and Demand Status: balanced
