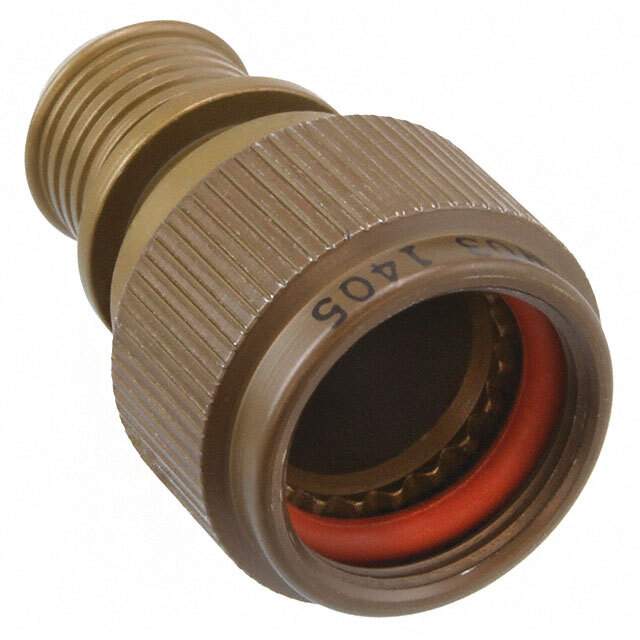

R85049/88-13W03 Real Image
Same model may have multiple batches, images only for reference.

R85049/88-13W03

Part No R85049/88-13W03
Manufacturer TE Connectivity
Catalog Circular Connectors - Backshells and Cable Clamps
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Backshells and Cable Clamps
Mfr TE Connectivity Aerospace, Defense and Marine
Series Military, SAE AS85049
Package Bag
Type Backshell, Banding
Cable Opening 0.438" (11.12mm)
Diameter - Outside 1.157" (29.39mm)
Shell Size - Insert 13, C
Cable Exit 180°
Material Aluminum
Plating Cadmium
Shielding Shielded
Color Olive Drab
Features Self Locking
Includes 2 pcs - 1 Backshell, 1 O-Ring
For Use With/Related Products MIL-DTL-38999 Series III, IV
Base Product Number R85049
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1315561-R85049/88-13W03
Ultra Librarian 3D Model Ultra Librarian R85049/88-13W03 CAD Model

Description

This military grade backshell is a perfect fit for connectors and interconnects in circular connectors. TE Connectivity Aerospace, Defense, and Marine

  • Color: Olive Drab
  • Feature: Self-Locking
  • Package: 1 Backshell, 1 O-Ring
  • Protection: Shielded
  • Material: Aluminum
  • Plating: Cadmium
  • Compatibility: MIL-DTL-38999 Series III and IV
  • Cable Opening: 0.438 inches
  • Diameter Outside: 1.157 inches
  • Cable Exit Angle: 180 degrees
  • ECCN: EAR99
  • REACH: REACH Affected
  • HTSUS Code: 8536.69.4020
  • Base Product Number: R85049
  • RoHS: Non-Compliant
