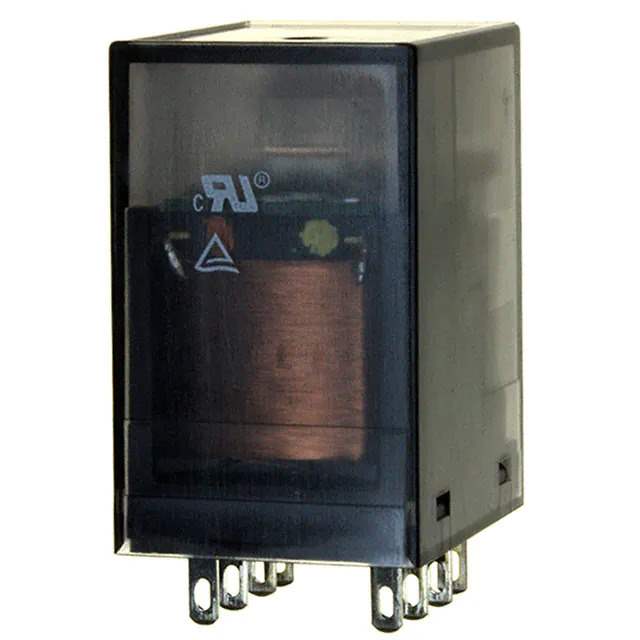

PT22AL24B Real Image
Same model may have multiple batches, images only for reference.

PT22AL24B

Part No PT22AL24B
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 12A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
Datasheet
PT22AL24B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series PTH, SCHRACK
Package Bulk
Product Status Obsolete
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 12 A
Switching Voltage 440VAC - Max
Coil Current 30.8 mA
Coil Type Non Latching
Features Lighted Indicator
Termination Style Plug In
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -45°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 777 Ohms
Base Product Number PT22A
Standard Package 250 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 890332-PT22AL24B
Ultra Librarian 3D Model Ultra Librarian PT22AL24B CAD Model

Description

The 890332-PT22AL24B is a power relay in the category of Relays - Power Relays, Over 2 Amps.

  • Category: Relays - Power Relays, Over 2 Amps
  • Contact Form: DPDT (2 Form C)
  • Package: Bulk
  • Quantity per Package: 250 pieces
  • Series: PTH
  • Brand: TE Connectivity's SCHRACK
  • Coil Resistance: 777 Ohms
  • Coil Voltage: 24VDC
  • Contact Material: Silver Nickel (AgNi)
  • Contact Rating: 12A
  • Switching Voltage: 440VAC maximum
  • Indicator: Lighted indicator
  • Mounting Type: Socketable
  • Temperature Range: -45°C to 70°C
  • REACH: REACH unaffected
  • HTSUS: 8536.41.0050
  • Manufacturer: TE Connectivity
  • Status: Obsolete
