Same model may have multiple batches, images only for reference.

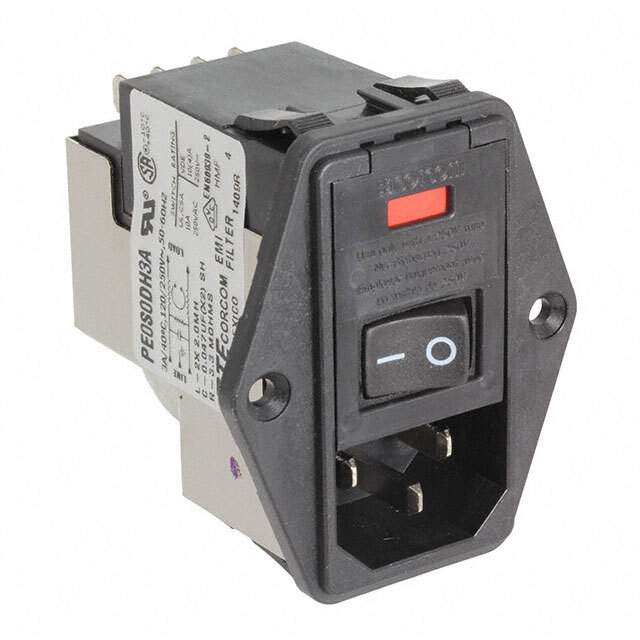

PE0S0DH3A Real Image
Same model may have multiple batches, images only for reference.

PE0S0DH3A

Part No PE0S0DH3A
Manufacturer TE Connectivity
Catalog OEM Parts (O - R)
Description Power Entry Module EMI/RFI Filtered M 3 POS (115VAC/230)VACVAC 3A/Contact Switch/Fuse ST 1 Port
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Module
Current 3 A
Current Rating 3 A
ELV Compliant
Features Shielded
Fuse Yes
Gender Male
Lead Free Yes
Leakage Current 2 µA
Length 50.29 mm
Maximum Operating Temperature 40 °C
Max Voltage Rating (AC) 250 V
Min Operating Temperature -10 °C
Mount Panel, Screw
Number of Contacts 3
Number of Pins 3
Number of Ports 1
Orientation Straight
Radiation Hardening No
RoHS Compliant
Termination Quick Connect
Voltage Rating (AC) 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 1050726-PE0S0DH3A
Categories OEM Parts(O-R)
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian PE0S0DH3A CAD Model

Description

The TE Connectivity PE0S0DH3A is a male, shielded, quick connect connector with a low popularity.

  • Current Rating: 3 A
  • Contacts/Pins: 3
  • Mounting Type: Surface Mount
  • Leakage Current: 2 µA
  • Fuse: Yes
  • Mounting Style: Panel, Screw
  • Maximum Operating Temperature: 40 °C
  • Minimum Operating Temperature: -10 °C
  • Voltage Rating (AC): 250 V
  • Maximum Voltage Rating (AC): 250 V
  • Voltage Rating (DC): 250 V
  • RoHS Compliant: Yes
  • Radiation Hardening: No
  • Supply and Demand Status: Short
