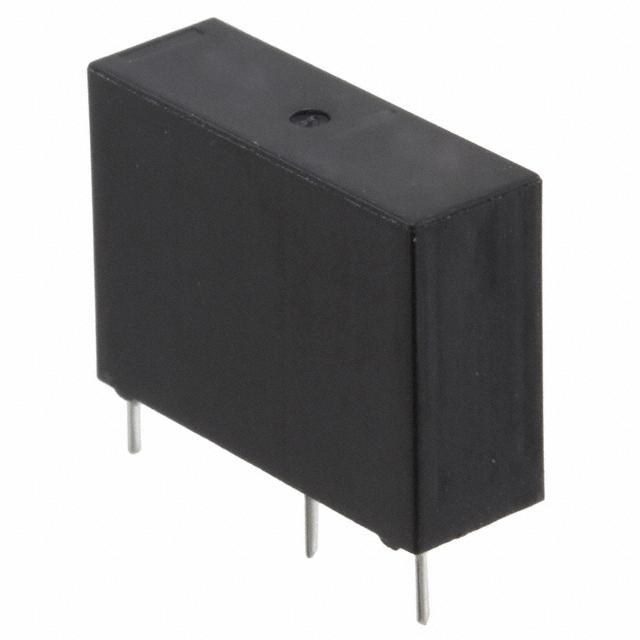

PCJ-112D3M-WG TE Connectivity
Same model may have multiple batches, images only for reference.

PCJ-112D3M-WG

Part No PCJ-112D3M-WG
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 12V
Datasheet
PCJ-112D3M-WG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 16.7mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 10ms
Release Time 4ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 720 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 270708-PCJ-112D3M-WG
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PCJ-112D3M-WG CAD Model

Description

The PCJ-112D3M-WG is a general-purpose relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Coil Voltage: 12VDC
  • Coil Resistance: 720 Ohms
  • Suitability: for use in various electronic devices and applications, such as home appliances, automotive systems, and lighting control
  • Features: high contact reliability, low power consumption, and high switching capacity
  • Construction: sealed and flux-protected
  • Insulation class: F
  • Compliance: RoHS compliant
  • Contact Rating: 5A
  • Switching Voltage: 250VAC, 30VDC - Max
