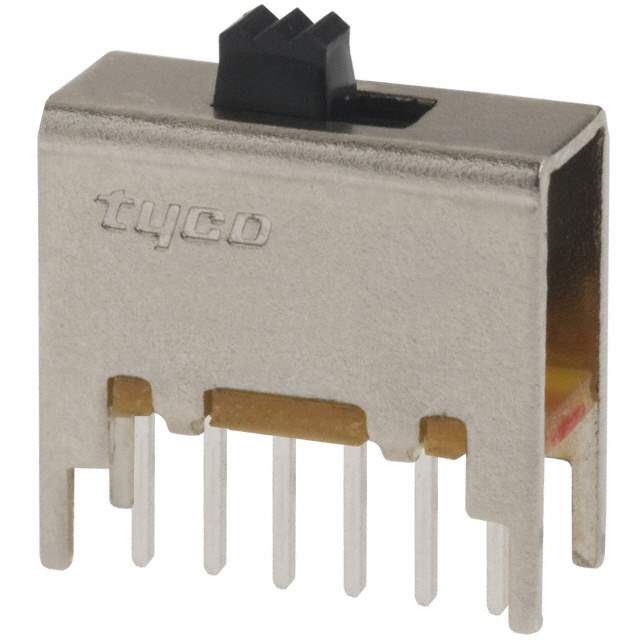

MSS2200 Real Image
Same model may have multiple batches, images only for reference.

MSS2200

Part No MSS2200
Manufacturer TE Connectivity
Catalog Slide Switches
Description SWITCH SLIDE DPDT 300MA 125V
Datasheet
MSS2200 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Bulk
Status Obsolete(EOL)
Circuit DPDT
Contact Timing Shorting (MBB)
Switch Function On-On
Current Rating 300mA (AC)
Voltage Rating - AC 125V
Actuator Type Standard
Actuator Length 2.30mm
Contact Finish Silver
Mounting Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.00mm
Temperature Range - Operating -20°C to 85°C
Mechanical Life 15,000 Cycles
Electrical Life 15,000 Cycles
Operating Force 600gf
Win Source Part Number 1102086-MSS2200
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MSS2200 CAD Model

Description

This electronic component is a DPDT switch from TE Connectivity ALCOSWITCH Switches.

  • Win Source Part Number: 1102086-MSS2200
  • Packaging: Bulk
  • Termination Style: PC Pin
  • Features: Epoxy sealed terminals
  • Current Rating: 300mA (AC)
  • Voltage Rating: 125V (AC)
  • Switch Function: On-On
  • Actuator Type: Standard
  • Mechanical Life: 15,000 cycles
  • Electrical Life: 15,000 cycles
  • Status: Obsolete (EOL)
  • Popularity: Medium
