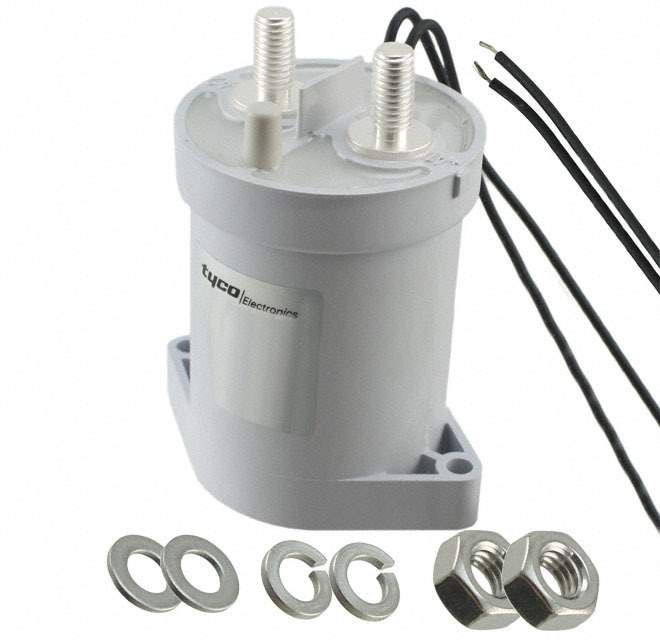

LEV200A5ANA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Contactors (Electromechanical)
Mfr TE Connectivity Aerospace, Defense and Marine
Series LEV200, KILOVAC
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form SPST-NO (DM) (1 Form X)
Contact Rating (Current) 500 A
Switching Voltage 900VDC - Max
Features Sealed - Hermetically
Termination Style Stud, Wire Leads
Temperature Range - Operating -40°C ~ 85°C
Must Operate Voltage 19 VDC
Must Release Voltage 5 VDC
Operate Time 25 ms
Release Time 12 ms
Coil Current 600 mA
Coil Resistance 40Ohms
Base Product Number LEV200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0045
Other Names 7-1618387-1-ND,7-1618387-1,716183871,A101166
Standard Package 1
Win Source Part Number 1038938-LEV200A5ANA
Ultra Librarian 3D Model Ultra Librarian LEV200A5ANA CAD Model

Description

The LEV200A5ANA is a SPST-NO (DM) (1 Form X) contact form relay manufactured by TE Connectivity Aerospace, Defense and Marine.

  • Switching Voltage: 900VDC - Max
  • Contact Rating: 500 A
  • Coil Voltage: 24VDC
  • Coil Current: 600 mA
  • Must Operate Voltage: 19 VDC
  • Must Release Voltage: 5 VDC
  • Mounting: Chassis
  • Temperature Range: -40°C ~ 85°C
  • Sealed: Hermetically Sealed
  • Package: Bulk
