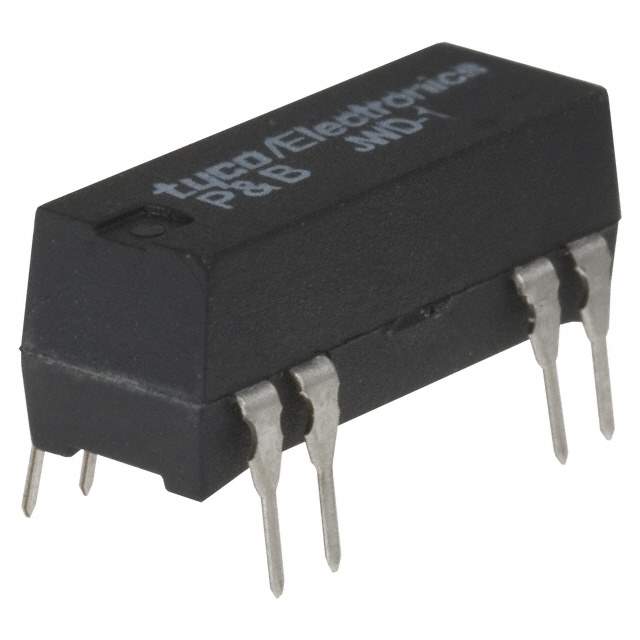

JWD-172-1

Part No JWD-172-1
Manufacturer TE Connectivity
Catalog Reed Relays
Description JWD/JWS Series Reed Relays | RELAY REED SPDT 500MA 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube
Mounting Style Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500mA
Switching Voltage 28VDC - Max
Coil Current 25.0mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 3.8 VDC
Must Release Voltage 0.5 VDC
Operate Time 1.5ms
Release Time 3ms
Temperature Range - Operating -35°C ~ 85°C
Contact Material Ruthenium (Ru)
Coil Resistance 200 Ohms
Manufacturer Pack Quantity 4,000
MSL Level Not Applicable
Win Source Part Number 1191786-JWD-172-1
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JWD-172-1 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays SPDT is a high-quality electronic component that provides reliable performance.

  • Contact Rating: 500mA
  • Switching Voltage: 28VDC - Max
  • Package: Through Hole
  • Termination: PC Pin
  • Supplied in: Tube of 4000 pieces
  • Must Operate Voltage: 3.8 VDC
  • Must Release Voltage: 0.5 VDC
