Same model may have multiple batches, images only for reference.

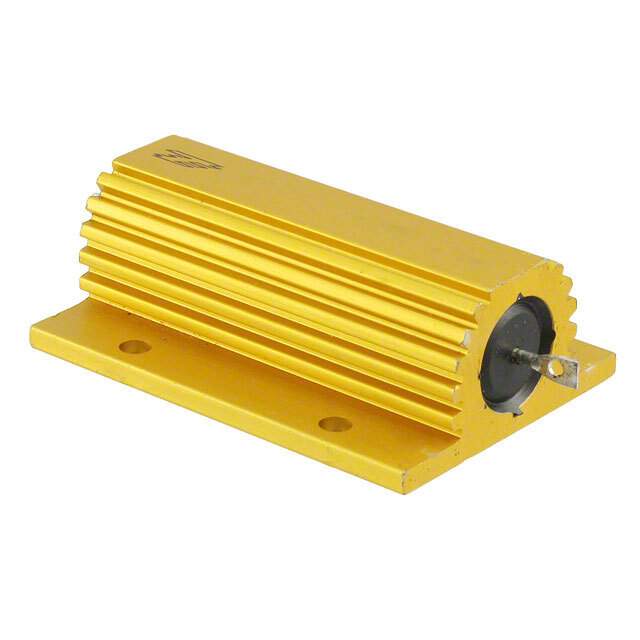

HSC10036RJ Real Image
Same model may have multiple batches, images only for reference.

HSC10036RJ

Part No HSC10036RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 36 OHM 5% 100W  /  36 Ohms ±5% 100W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 36 Ohms
Tolerance ±5%
Power (Watts) 100W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 2.579" L x 1.870" W (65.50mm x 47.50mm)
Height - Seated (Max) 1.024" (26.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.29.0000
Other Names 5-1625999-9,A137192,HSC10036RJ-ND
Standard Package 10
Win Source Part Number 997534-HSC10036RJ
Ultra Librarian 3D Model Ultra Librarian HSC10036RJ CAD Model

Description

The TE Connectivity HSC10036RJ is an electronic component that falls under the category of resistors and chassis mount resistors.

  • Type: High-power wirewound resistor
  • Resistance: 36 ohms
  • Power Rating: 100W
  • Win Source Part Number: 997534-HSC10036RJ
  • Manufacturer: TE Connectivity Passive Product
  • Performance: Reliable
  • Suitable for: Various electronic devices
