Same model may have multiple batches, images only for reference.

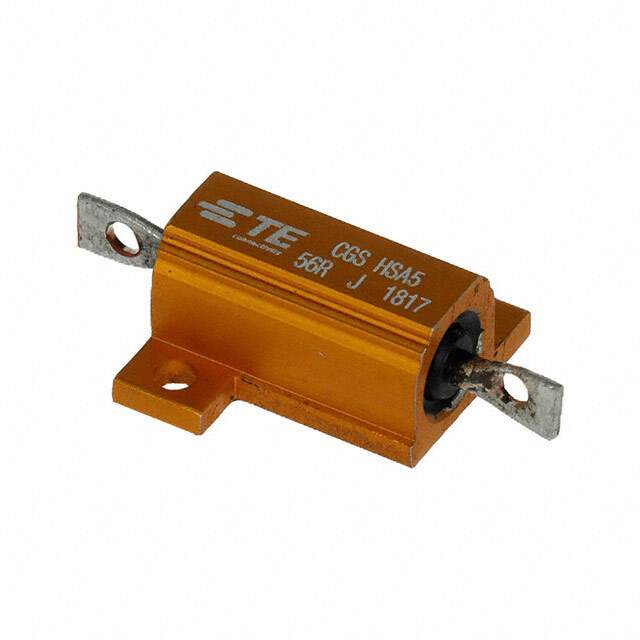

HSA556RJ Real Image
Same model may have multiple batches, images only for reference.

HSA556RJ

Part No HSA556RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Box
Resistance 56 Ohms
Tolerance ±5%
Power (Watts) 10W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 0.669" L x 0.669" W (17.00mm x 17.00mm)
Height - Seated (Max) 0.354" (9.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Base Product Number HSA55
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1315916-HSA556RJ
Ultra Librarian 3D Model Ultra Librarian HSA556RJ CAD Model

Description

The TE Connectivity Passive Product CGS HS HSA556RJ is a wirewound chassis mount resistor that is ideal for use in various applications.

  • Resistance: 56 Ohms
  • Power: 10W
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Mounting Feature: Flanges
  • Height: 0.354 inches (9.00mm)
  • Dimension: 0.669 inches L x 0.669 inches W (17.00mm x 17.00mm)
