Same model may have multiple batches, images only for reference.

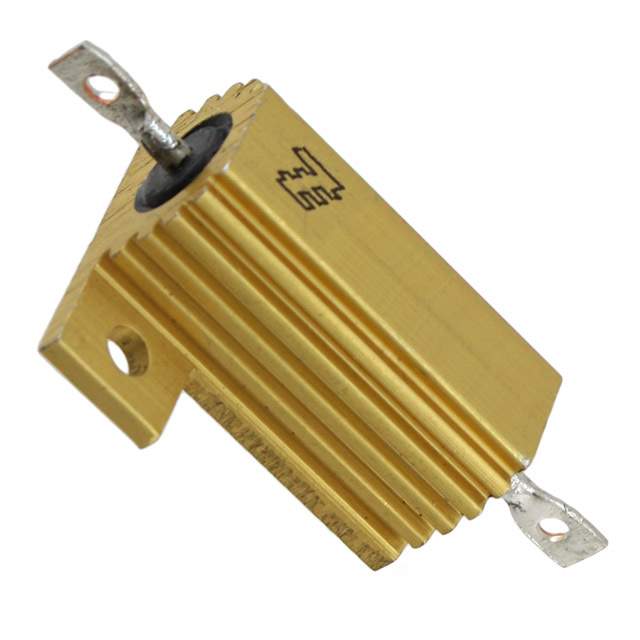

HSA25200RJ Real Image
Same model may have multiple batches, images only for reference.

HSA25200RJ

Part No HSA25200RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 200 OHM 5% 25W / 200 Ohms ±5% 25W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Tray
Resistance 200 Ohms
Tolerance ±5%
Power (Watts) 25W
Composition Wirewound
Temperature Coefficient ±30ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Size / Dimension 1.142" L x 1.102" W (29.00mm x 28.00mm)
Height - Seated (Max) 0.591" (15.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Base Product Number HSA25
Standard Package 100
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1341049-HSA25200RJ
Ultra Librarian 3D Model Ultra Librarian HSA25200RJ CAD Model

Description

The HS and CGS series of wirewound resistors from TE Connectivity Passive Product are suitable for use in chassis mount resistor applications.

  • Resistance: 200 Ohms
  • Tolerance: ±5%
  • Power Rating: 25W
  • Temperature Coefficient: ±30ppm/°C
  • Coating: Aluminum
  • Lead Style: Solder lugs
  • Package/Case: Axial and box-shaped with flanges for mounting
  • Temperature Range: -55°C to 200°C
  • Failure Rate: Not specified
