Same model may have multiple batches, images only for reference.

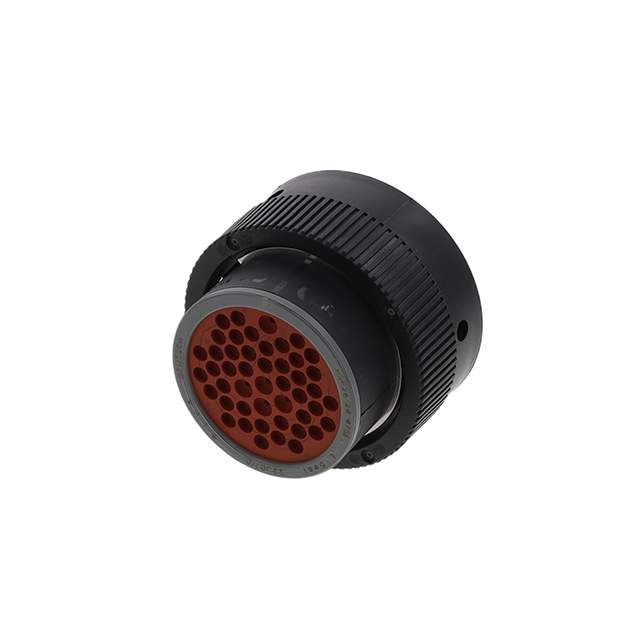

HDP26-24-47SE Real Image
Same model may have multiple batches, images only for reference.

HDP26-24-47SE

Part No HDP26-24-47SE
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN PLG HSG FMALE 47POS INLINE / 47 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Housings
Manufacturer TE Connectivity Deutsch Connectors
Packaging Bulk
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 47
Shell Size - Insert 24-47
Contact Type Crimp
Contact Size 16 (5), 20 (42)
Mounting Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP26
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number -1494-HDP26-24-47SE-CSI,-HDP26-24-47SE-SI,1734-1234
Standard Package 40
Win Source Part Number 1334443-HDP26-24-47SE
Ultra Librarian 3D Model Ultra Librarian HDP26-24-47SE CAD Model

Description

The TE Connectivity Deutsch Connectors 1334443-HDP26-24-47SE is a circular connector housing with a plug housing connector type.

  • Connector Type: Plug Housing
  • Coupling Nut: Yes
  • Number of Positions: 47
  • Contact Type: Crimp
  • Fastening Type: Bayonet Lock
  • Shell Size: 24-47
  • Operating Temperature: -55°C to 125°C
  • Housing Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Insert Material: Polyetherimide (PEI)
  • ROHS3 Compliant: Yes
  • Ingress Protection: IP68
