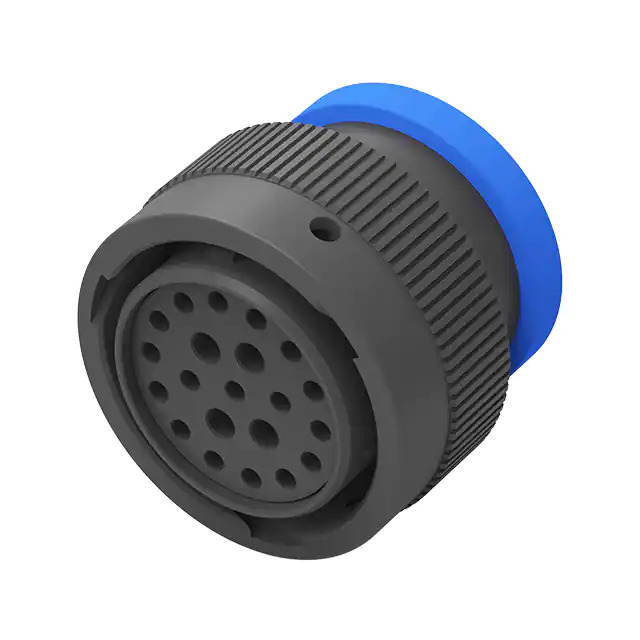

HDP26-24-21SE-L017 TE Connectivity
Same model may have multiple batches, images only for reference.

HDP26-24-21SE-L017

Part No HDP26-24-21SE-L017
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN PLG HSG FMALE 21POS INLINE / 21 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut, Ring Adapter
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Housings
Mfr TE Connectivity Deutsch Connectors
Series HDP20
Package Bulk
Product Status Active
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 21
Shell Size - Insert 24-21
Shell Size, MIL -
Contact Type Crimp
Contact Size 12 (4), 16 (17)
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Finish -
Housing Color Black, Blue
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Coupling Nut, Ring Adapter
Shielding Unshielded
Note Contacts Not Included
Includes -
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP26
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1363792-HDP26-24-21SE-L017
Ultra Librarian 3D Model Ultra Librarian HDP26-24-21SE-L017 CAD Model

Description

The TE Connectivity Deutsch Connectors HDP20 Circular Connector Housing is a high-performance housing designed for female sockets.

  • Gender: For Female Sockets
  • Number of Positions: 21
  • Shell Size - Insert: 24-21
  • Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Color: Black, Blue
  • Mounting Type: Free Hanging (In-Line)
  • Fastening Type: Bayonet Lock
  • Series: HDP20
  • Manufacturer: TE Connectivity Deutsch Connectors
  • Product Status: Active
