Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series ER, CGS
Package Tape & Box (TB)
Resistance 7.5 Ohms
Tolerance ±5%
Power (Watts) 7W
Composition Wirewound
Temperature Coefficient 0/ +60ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.315" Dia x 0.874" L (8.00mm x 22.20mm)
Number of Terminations 2
Base Product Number ER58
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1315295-ER587R5JT
Ultra Librarian 3D Model Ultra Librarian ER587R5JT CAD Model

Description

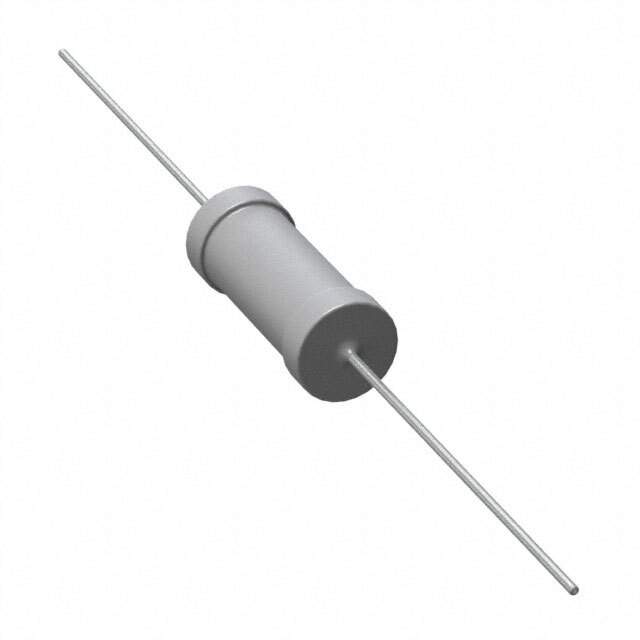

The TE Connectivity Passive Product ER58 series resistor is a wirewound axial resistor with a resistance of 7.5 ohms and a power rating of 7 watts.

  • Series: ER58
  • Resistor Type: Wirewound
  • Resistance: 7.5 ohms
  • Power Rating: 7 watts
  • Tolerance: ±5%
  • Temperature Coefficient: 0/+60ppm/°C
  • Temperature Range: -55°C to 200°C
  • Package/Case: Axial
  • Supplier Device Package: Axial
  • Mounting Type: Through Hole
