EDS12SGRNTR04Q

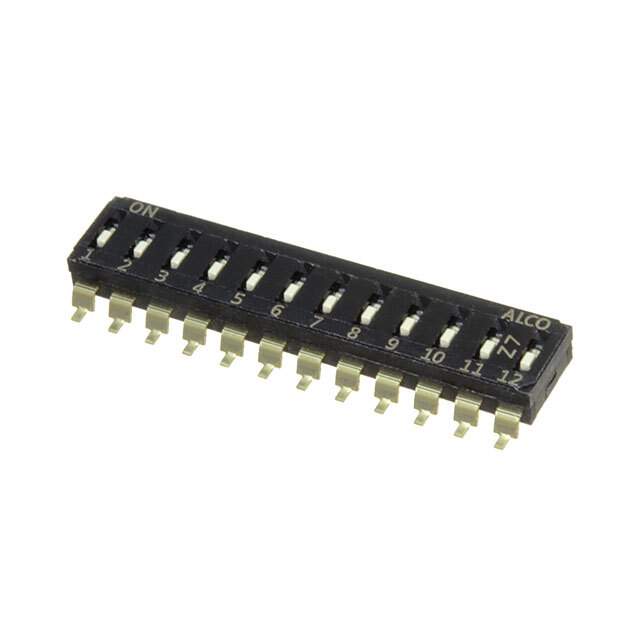

Part No EDS12SGRNTR04Q
Manufacturer TE Connectivity
Catalog DIP Switches
Description END STACK DIP 12P G RECESS T&R / Dip Switch SPST 12 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series EDS
Package Tape & Reel
Circuit SPST
Number of Positions 12
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.134" (3.40mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -20°C ~ 85°C
Body Material Polyamide (PA), Nylon
Length 1.196" (30.38mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number EDS12
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Other Names 450-2590-1,450-2590-2,-5-2319848-3-SI,5-2319848-3,450-2590-6
Standard Package 900
Win Source Part Number 1162779-EDS12SGRNTR04Q
Ultra Librarian 3D Model Ultra Librarian EDS12SGRNTR04Q CAD Model

Description

The EDS12SGRNTR04Q is a DIP switch from TE Connectivity's EDS series.

  • Series: EDS
  • Positions: 12
  • Pitch: 0.100 inches
  • Termination Style: Full
  • Contact Finish: Gold
  • Packaging: Tape and Reel
  • Circuit: SPST
  • Actuator Type: Slide
  • Current Rating: 25mA
  • Height Above Board: 0.134 inches
  • Length: 1.196 inches
  • Temperature Range: -20°C to 85°C
  • Electrical and Mechanical Life: Up to 2,000 cycles
  • Manufacturer: TE Connectivity
