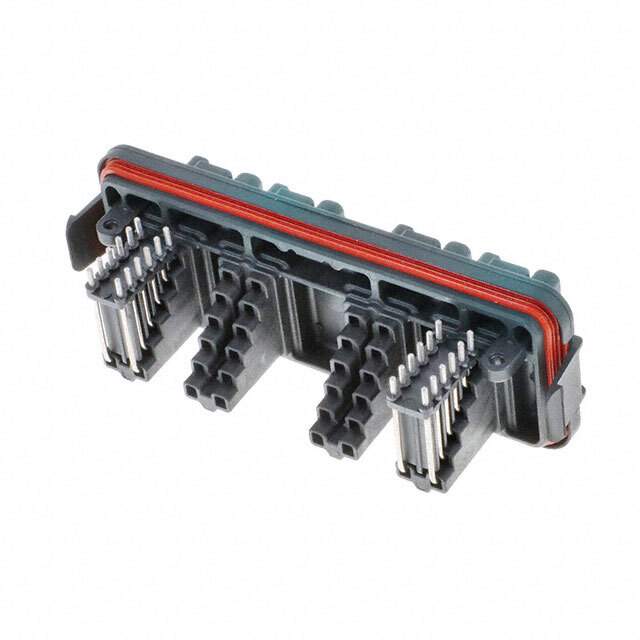

DT13-24PAB-R015 Real Image
Same model may have multiple batches, images only for reference.

DT13-24PAB-R015

Part No DT13-24PAB-R015
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 48POS 4.44MM / Connector Header Panel Mount, Through Hole, Right Angle 48 (12 x 4) position 0.175" (4.44mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity Deutsch Connectors
Series DT
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.175" (4.44mm)
Number of Positions 48 (12 x 4)
Number of Rows 2
Row Spacing - Mating 0.360" (9.14mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.180" (4.57mm)
Insulation Height 2.097" (53.25mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Plastic
Features Mounting Flange
Temperature Range - Operating -55°C ~ 125°C
Ingress Protection IP68/IP6K9K
Insulation Color Black
Voltage Rating 250VDC
Applications Automotive
Base Product Number DT13
Standard Package 40
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339068-DT13-24PAB-R015
Ultra Librarian 3D Model Ultra Librarian DT13-24PAB-R015 CAD Model

Description

This male pin header connector is a part of the DT series of rectangular connectors, which is designed for use in automotive applications from an unspecified manufacturer.

  • Series: DT
  • Application: Automotive
  • Features: Mounting Flange
  • Termination: Solder
  • Number of Rows: 2
  • Number of Positions per Row: 48
  • Total Number of Pins: 96
  • Voltage Rating: 250VDC
  • Ingress Protection: IP68/IP6K9K
  • Shrouded: With 4 Walls
  • Pitch-Mating: 0.175" (4.44mm)
  • Contact Finish for Mating and Post: Tin
  • Contact Length for Post: 0.180" (4.57mm)
  • Mounting Options: Panel Mount, Through Hole Mount, Right Angle Mount
  • Insulation Material: Plastic
  • Insulation Height: 2.097" (53.25mm)
  • Shape: Circular
  • Temperature Range: -55°C to 125°C
