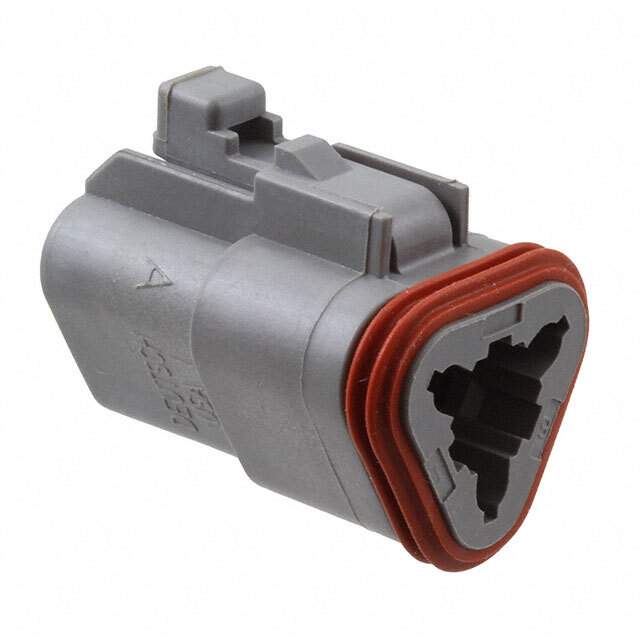

DT06-3S Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer TE Connectivity Deutsch Connectors
Packaging Bulk
Connector Type Plug
Contact Type Female Socket
Number of Positions 3
Number of Rows 2
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Gray
Features IP68, IP6K9K
Note Contacts Not Included
Base Product Number DT06
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number DDT06-3S
Standard Package 1
Win Source Part Number 1334151-DT06-3S
Ultra Librarian 3D Model Ultra Librarian DT06-3S CAD Model

Description

The TE Connectivity Deutsch Connectors DT06-3S is a rectangular connector housing that has 3 positions and is designed for use in various applications.

  • Connector Type: Plug
  • Contact Type: Female socket
  • Mounting: Free hanging (in-line)
  • Fastening Type: Latch lock
  • IP Rating: IP68 and IP6K9K
  • Packaging: Bulk
  • Color: Gray
  • Contact Termination: Crimp
  • Standard Package: 1
  • ROHS3 Compliant: Yes
  • REACH: Unaffected
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
