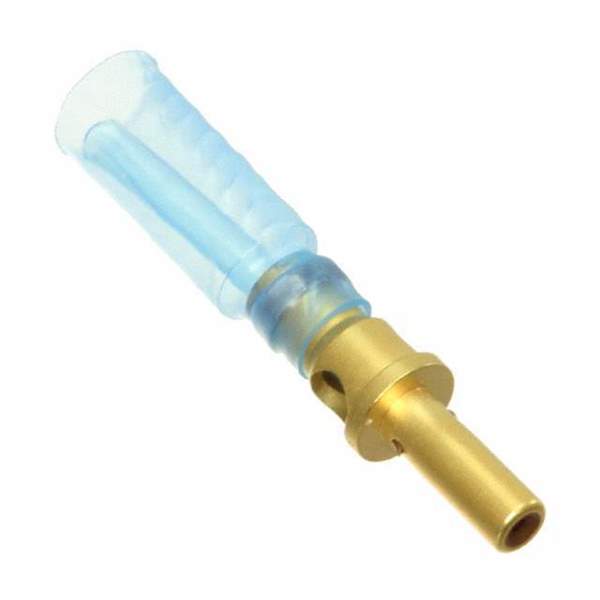

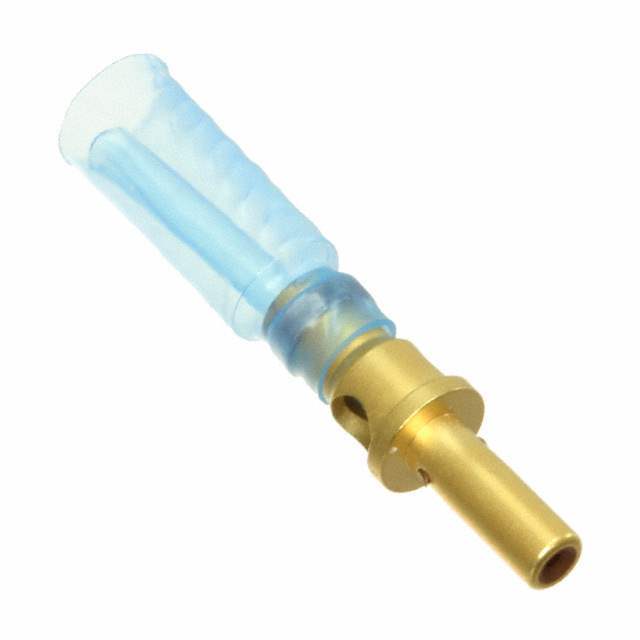

D-602-0146 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects> Contacts >Multi Purpose
Manufacturer TE Connectivity AMP Connectors
Packaging  Bulk
Part Status Active
Type Coaxial
Pin or Socket Coax, Socket Center, Assembly
Contact Termination Solder
Wire Gauge 22-26 AWG
Contact Material Beryllium Copper
Contact Finish Gold
Ultra Librarian 3D Model Ultra Librarian D-602-0146 CAD Model

Description

Twisted Pair, Pin, Size 12 Contact Size, 22 – 26 AWG, .34 – .14 mm² Wire, Shielded Contacts
