Same model may have multiple batches, images only for reference.

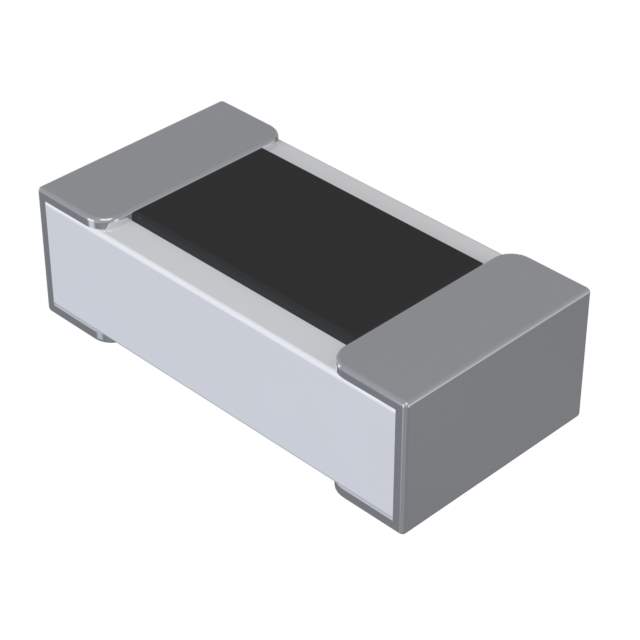

CRGCQ0402F470R Real Image
Same model may have multiple batches, images only for reference.

CRGCQ0402F470R

Part No CRGCQ0402F470R
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 470 OHM 1% 1/16W 0402 / 470 Ohms ±1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CRGCQ
Package Tape & Reel
Resistance 470 Ohms
Tolerance ±1%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Features Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Ratings AEC-Q200
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names A129623DKR,A129623CT,A129623TR,2-2176337-1
Standard Package 10,000
Win Source Part Number 1033625-CRGCQ0402F470R
Ultra Librarian 3D Model Ultra Librarian CRGCQ0402F470R CAD Model

Description

The CRGCQ0402F470R chip resistor by TE Connectivity Passive Product is a surface mount device.

  • Resistance: 470 Ohms
  • Power Rating: 0.063W (1/16W)
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Designed for: Automotive AEC-Q200
  • Moisture Resistant: Yes
  • Packaging: Tape and Reel
  • Pieces per Package: 10,000
  • MSL Level: 1 (unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8533.21.0030
