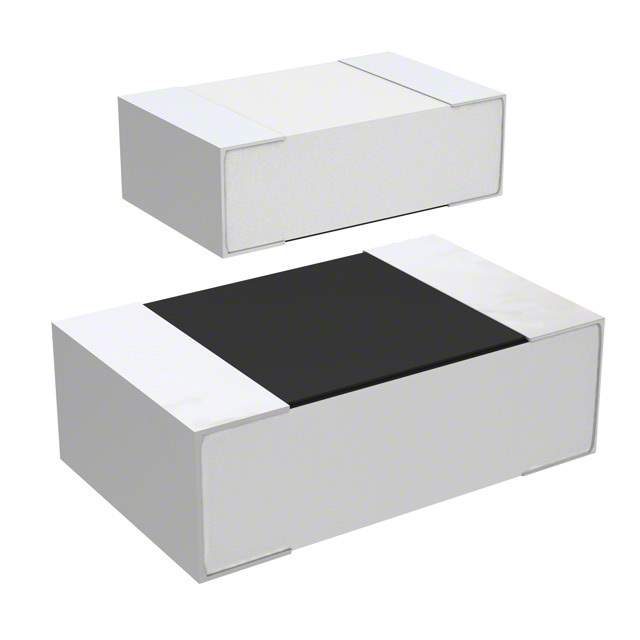

CRG0805F47R Real Image
Same model may have multiple batches, images only for reference.

CRG0805F47R

Part No CRG0805F47R
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 47 OHM 1% 1/8W 0805 / 47 Ohms ±1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CRG, Neohm
Package Tape & Reel
Resistance 47 Ohms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1623235-1,1623235-1-ND,A126371CT,A126371TR,A126371DKR,CRG0805F47R-ND
Standard Package 5,000
Win Source Part Number 1205894-CRG0805F47R
Ultra Librarian 3D Model Ultra Librarian CRG0805F47R CAD Model

Description

The CRG0805F47R is a surface mount chip resistor manufactured by TE Connectivity Passive Product.

  • Series: CRG and Neohm
  • Standard Package: 5,000
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • Power Rating: 0.125W (1/8W)
  • Resistance: 47 Ohms
  • Manufacturer: TE Connectivity Passive Product
