Same model may have multiple batches, images only for reference.

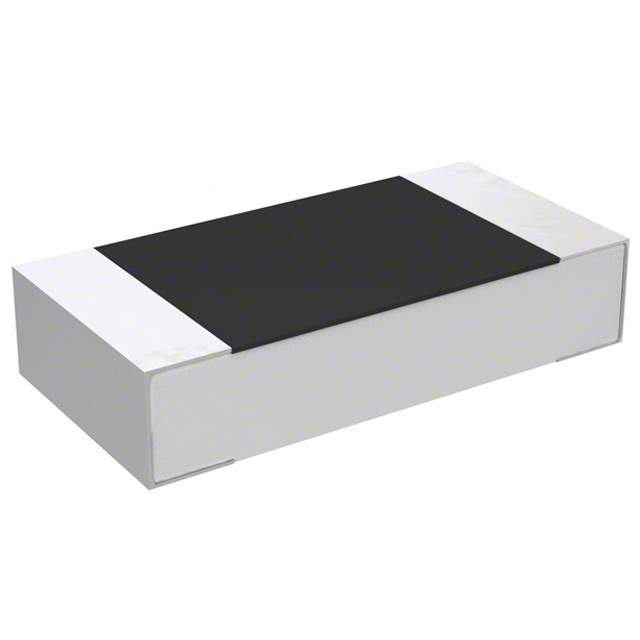

CPF1206B24KE1 Real Image
Same model may have multiple batches, images only for reference.

CPF1206B24KE1

Part No CPF1206B24KE1
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CPF, Neohm
Package Tape & Reel (TR)
Resistance 24 kOhms
Tolerance ±0.1%
Power (Watts) 0.125W, 1/8W
Composition Thin Film
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.120" L x 0.061" W (3.05mm x 1.55mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Base Product Number CPF1206
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1315691-CPF1206B24KE1
Ultra Librarian 3D Model Ultra Librarian CPF1206B24KE1 CAD Model

Description

The CPF series resistor is a chip resistor from TE Connectivity Passive Product.

  • Resistance: 24 kOhms
  • Power Rating: 0.125W
  • Type: Thin Film
  • Package Size: 1206 (3216 Metric)
  • Mounting: Surface Mount
  • Category: Chip Resistor - Surface Mount
  • Operating Temperature Range: -55°C to 155°C
  • Supplied In: Tape and Reel
  • HTSUS Code: 8533.21.0030
