Same model may have multiple batches, images only for reference.

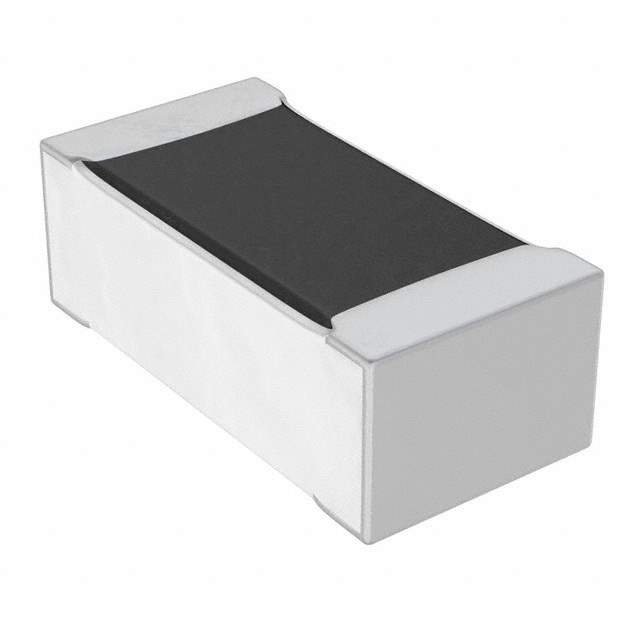

CPF0402B5K6E1 Real Image
Same model may have multiple batches, images only for reference.

CPF0402B5K6E1

Part No CPF0402B5K6E1
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 5.6K OHM 0.1% 1/16W 0402 / 5.6 kOhms ±0.1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thin Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CPF, Neohm
Package Tape & Reel
Resistance 5.6 kOhms
Tolerance ±0.1%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.014" (0.35mm)
Number of Terminations 2
Base Product Number CPF0402
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 6-1879208-7,618792087,A102926TR,6-1879208-7-ND,A102926DKR,A102926CT
Standard Package 1,000
Win Source Part Number 1208979-CPF0402B5K6E1
Ultra Librarian 3D Model Ultra Librarian CPF0402B5K6E1 CAD Model

Description

The CPF0402B5K6E1 from TE Connectivity is a chip resistor - surface mount.

  • Resistance: 5.6 kOhms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power Rating: 0.063W
  • Package: 0402 (1005 Metric)
  • Temperature Range: -55°C to 155°C
  • Height: 0.014" (0.35mm)
  • Type: Thin film
  • Terminations: 2
