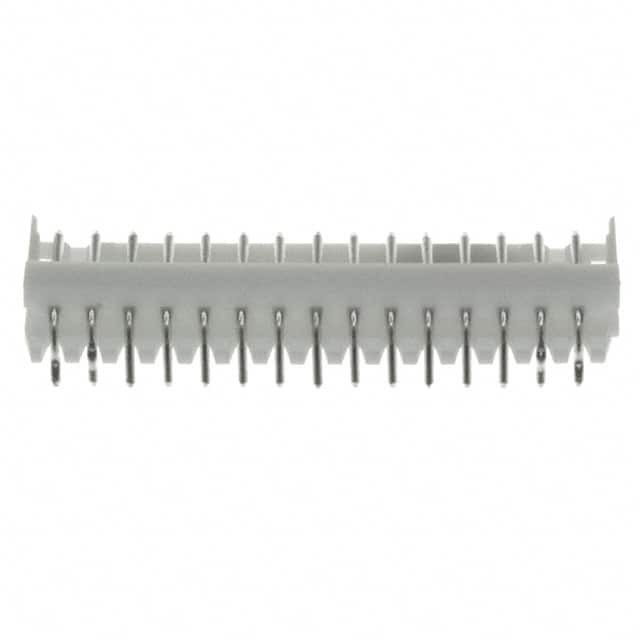

1-292253-5

Name: 1-292253-5
Brand: TE Connectivity
SKU: 853912
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1-292253-5
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 15POS 2MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity
Series	CT
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	15
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Mounting Type	Through Hole, Right Angle
Termination	Kinked Pin, Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.177" (4.50mm)
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.157" (4.00mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	125VAC
Applications	General Purpose
Base Product Number	292253
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853912-1-292253-5
Ultra Librarian 3D Model	Ultra Librarian 1-292253-5 CAD Model

Alternative Products

Description

The CT series rectangular connector header is a versatile and reliable connector for various electronic applications.

Positions: 15
Contact Gender: Male Pin
Fastening Type: Detent Lock
Contact Material: Brass
Contact Finish: Tin
Voltage Rating: 125VAC
Current Rating: Varies by wire gauge
Mounting Type: Through-Hole, Right Angle
Package: Bulk
Design: Shrouded 3-Wall
Manufacturer: TE Connectivity
