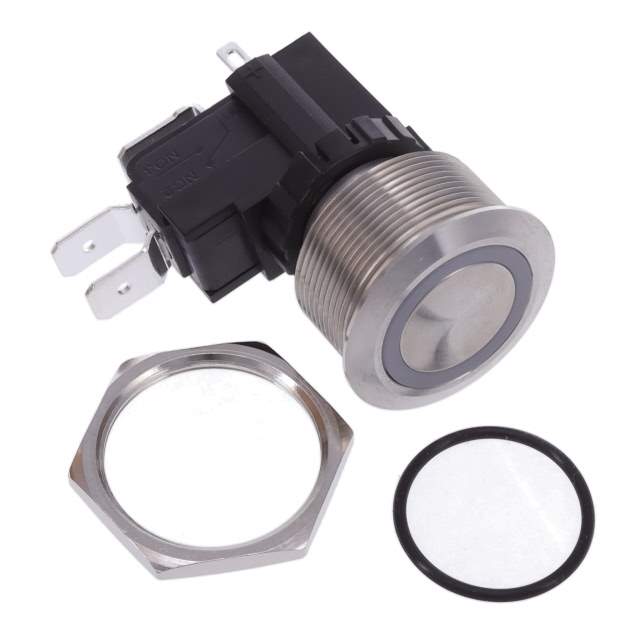

AVH25MSSFEB122604 Real Image
Same model may have multiple batches, images only for reference.

AVH25MSSFEB122604

Part No AVH25MSSFEB122604
Manufacturer TE Connectivity
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 26A 125V / Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series AVH
Package Box
Mounting Type Panel Mount, Front
Type Anti-Vandal, Illuminated
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 26A (AC)
Voltage Rating - AC 125 V
Actuator Type Round, Button, Flush
Actuator Marking No Marking
Color - Actuator/Cap Silver
Illumination Type, Color LED, Red/Blue
Illumination Voltage (Nominal) 12 VDC
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions Circular - 25.20mm Dia
Temperature Range - Operating -25°C ~ 85°C
Mechanical Life 1,000,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number AVH25M
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9035
Other Names 2-2364701-5,450-AVH25MSSFEB122604
Standard Package 10
Win Source Part Number 1136946-AVH25MSSFEB122604
Ultra Librarian 3D Model Ultra Librarian AVH25MSSFEB122604 CAD Model

Description

The AVH25MSSFEB122604 is a pushbutton switch from the AVH series, manufactured by TE Connectivity ALCOSWITCH Switches.

  • Series: AVH
  • Type: Anti-vandal and illuminated
  • Termination Style: Quick connect, 0.250 inches (6.3mm)
  • Switch Function: On-Mom
  • Circuit: SPDT
  • Actuator Type: Round, Button, Flush
  • Actuator/Cap Color: Silver
  • Panel Cutout Dimensions: Circular, 25.20mm diameter
  • Package Type: Box
  • Ingress Protection: IP67 (Dust-tight and waterproof)
  • Voltage Rating (AC): 125V
  • Illumination Voltage: 12VDC
  • Illumination Type: LED
  • Illumination Color: Red/Blue
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Operating Temperature Range: -25°C to 85°C
  • Current Rating: 26A (AC)
  • REACH Status: REACH affected
  • HTSUS Code: 8536.50.9035
