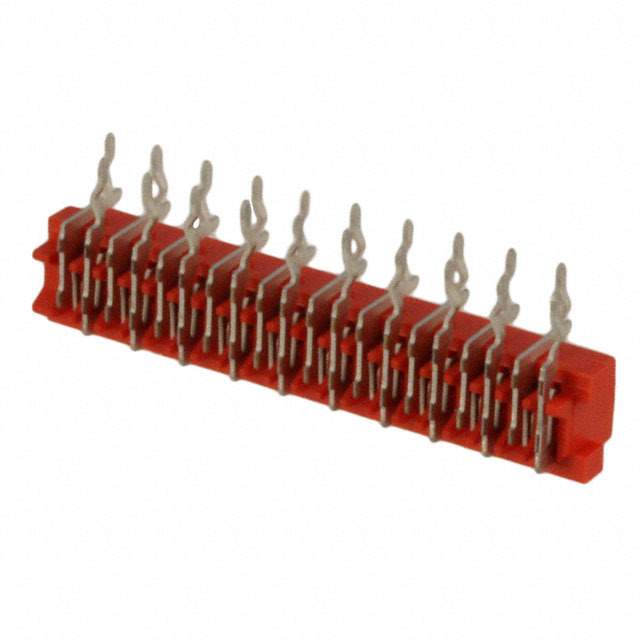

9-215460-0

Name: 9-215460-0
Brand: TE Connectivity
SKU: 811838
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	9-215460-0
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT 20POS 0.1 TIN PCB R/A / AMP Micro-Match Miniature Connector System
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	TE Connectivity AMP Connectors
Packaging	Tape & Box (TB)
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Style	Through Hole, Right Angle
Termination	Kinked Pin, Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Red
Insulation Height	0.228" (5.80mm)
Contact Length - Post	0.122" (3.10mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Voltage Rating	100VDC
Applications	Automotive, General Purpose
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material	Phosphor Bronze
Manufacturer Pack Quantity	250
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	811841-9-215460-0
Ultra Librarian 3D Model	Ultra Librarian 9-215460-0 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 811841-9-215460-0 is a through-hole, right-angle connector that is a receptacle type.

Packaging: Tape & Box (TB)
Positions: 20
Contact Type: Forked
Rows: 2
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Phosphor Bronze
Voltage Rating: 100VDC
Material Flammability Rating: UL94 V-0
Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Connector Style: Board to Board or Cable
Pitch Mating: 0.100" (2.54mm)
Contact Finish-Mating: Tin
Contact Finish-Post: Tin
Insulation Color: Red
Row Spacing-Mating: 0.100" (2.54mm)
Contact Length-Post: 0.122" (3.10mm)
Insulation Height: 0.228" (5.80mm)
Manufacturer Pack Quantity: 250
MSL Level: 1 (Unlimited)
