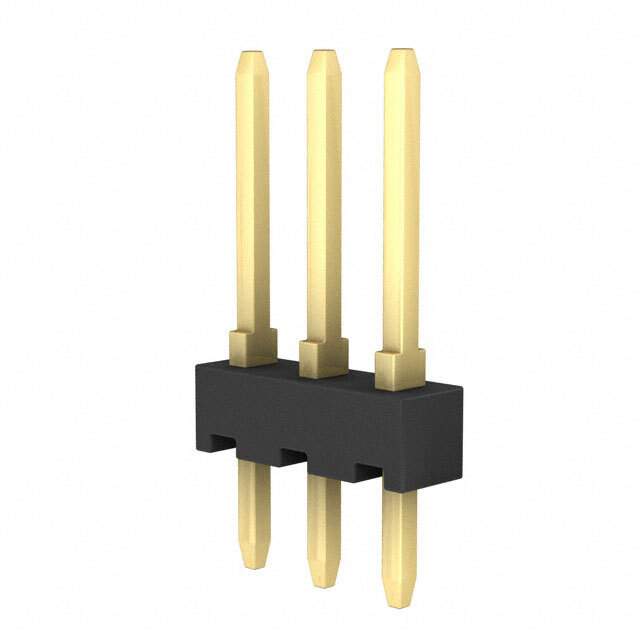

87220-3 Real Image
Same model may have multiple batches, images only for reference.

87220-3

Part No 87220-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 2.54MM / Connector Header Through Hole 3 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod II
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.318" (8.08mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.533" (13.55mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Gold
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post Flash
Base Product Number 87220
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A26544,2266-87220-3,87220-3-ND
Standard Package 500
Win Source Part Number 975942-87220-3
Ultra Librarian 3D Model Ultra Librarian 87220-3 CAD Model

Description

The 975942-87220-3 is a 3-position AMPMODU Mod II male pin header connector from TE Connectivity AMP Connectors. TE Connectivity AMP Connectors.

  • Positions: 3
  • Series: AMPMODU Mod II
  • Contact Material: Phosphor Bronze
  • Contact Plating (Mating): Gold
  • Contact Plating (Post): Flash
  • Pitch: 0.100 inches (2.54mm)
  • Contact Shape: Square
  • Operating Temperature: -65°C to 105°C
  • Shrouded: No
  • Mounting Type: Through-Hole
  • Connection Style: Board-to-Board or Cable
  • Material Flammability: UL94 V-0
  • Packaging: Bulk
  • Standard Package: 500
