770974-2

Name: 770974-2
Brand: TE Connectivity
SKU: 1381183
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	770974-2
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors

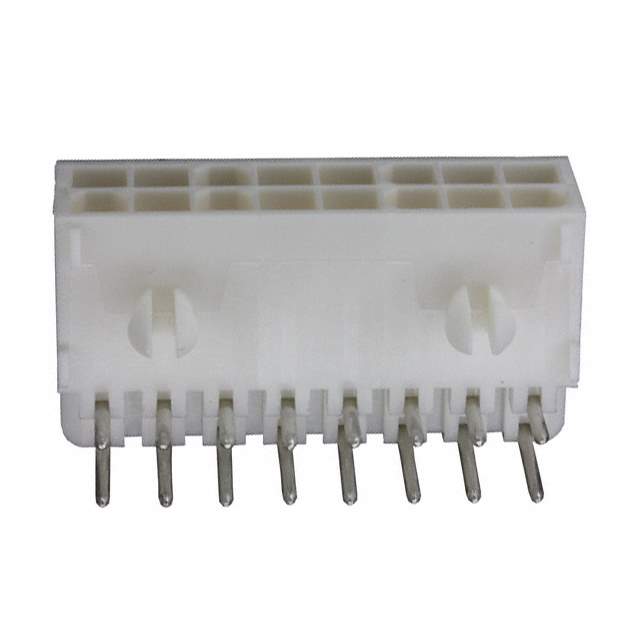

Description	CONN HEADER R/A 16POS 4.14MM / Connector Header Through Hole, Right Angle 16 position 0.163" (4.14mm)
Datasheet	770974-2 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	TE Connectivity
Series	Mini-Universal MATE-N-LOK
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.163" (4.14mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.163" (4.14mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	-
Contact Length - Post	0.145" (3.68mm)
Overall Contact Length	-
Insulation Height	0.386" (9.80mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin-Lead
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Board Lock
Temperature Range - Operating	-20°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	White
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	600VAC
Mated Stacking Heights	-
Contact Finish Thickness - Post	150.0µin (3.81µm)
Applications	General Purpose
Base Product Number	770974
RoHS Status	RoHS non-compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	200 pcs
Win Source Part Number	1381183-770974-2
Ultra Librarian 3D Model	Ultra Librarian 770974-2 CAD Model

Alternative Products

Description

The 1198319 is a Mini-Universal MATE-N-LOK header connector from TE Connectivity.

Series: Mini-Universal MATE-N-LOK
Positions: 16
Contact Gender: Male Pin
Board Lock: Yes
Application: General-Purpose
Voltage Rating: 600VAC
Termination: Solder
Fastening: Locking Ramp
Contact Material: Brass
Insulation Material: Polyamide (PA), Nylon
Pitch: 0.163" (4.14mm)
Contact Finish: Gold
Operating Temperature: -20°C to 105°C
Packaging: Bulk
Standard Package Quantity: 200 pcs
Status: Obsolete
RoHS Compliant: No
