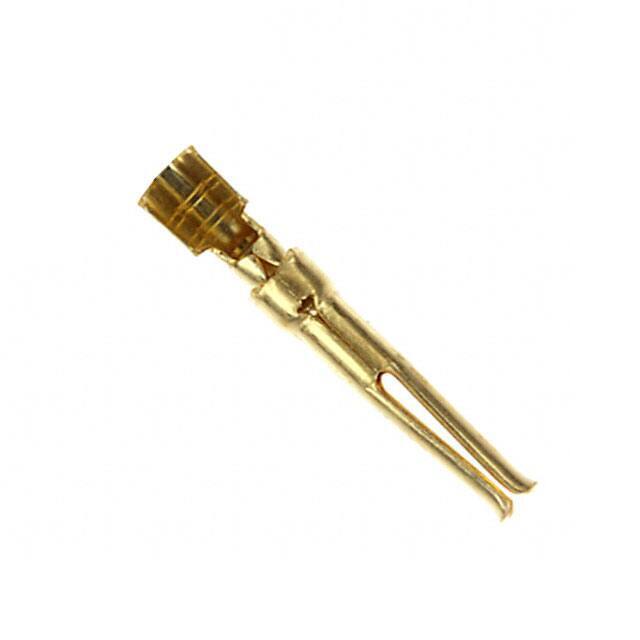

745230-5 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Tape & Reel (TR)
Product Status Active
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 18-22 AWG
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number 745230
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365108-745230-5
Ultra Librarian 3D Model Ultra Librarian 745230-5 CAD Model

Description

The TE Connectivity AMP Connectors 1365108-745230-5 is a multi-purpose contact designed for various electronic applications.

  • Series: AMPLIMITE HDP-20
  • Contact Type: Socket
  • Termination: Crimp
  • Wire Gauge: 18-22 AWG
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
