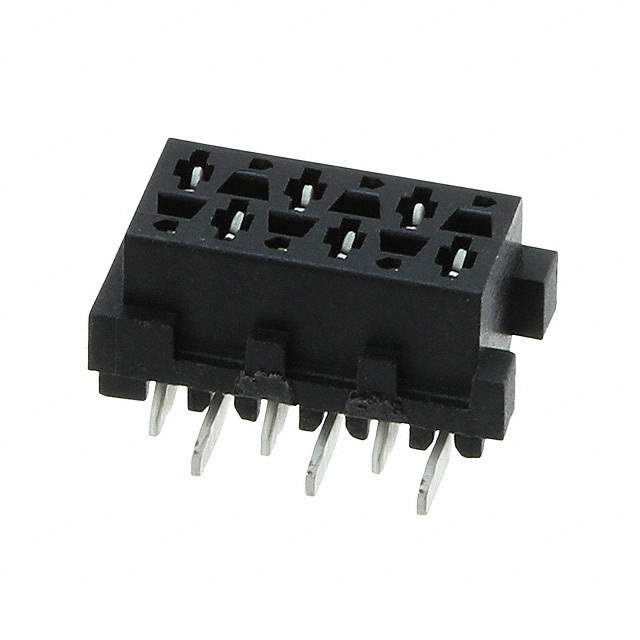

Same model may have multiple batches, images only for reference.

7-2178711-6

Name: 7-2178711-6
Brand: TE Connectivity
SKU: 761806
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7-2178711-6
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN 6P FOB P&P VERT RCPT SMD
Datasheet	7-2178711-6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Series	Micro-MaTch
Packaging	Reel package
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	118.1μin (3.00μm)
Insulation Color	Black
Insulation Height	0.209" (5.30mm)
Operating Temperature Range	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Pick and Place
Applications	General Purpose, Telecommunications
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Material	Brass
Contact Finish Thickness - Post	118.1μin (3.00μm)
Win Source Part Number	761806-7-2178711-6
Popularity	Medium
Supply and Demand Status	Balance
Family Name	2178711
Introduction Date	January 01, 2000
ECCN	EAR99
Country of Origin	Germany, Switzerland
Halogen Free	Not Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 7-2178711-6 CAD Model

Description

The TE Connectivity AMP Connectors 2178711-6-761806 is a Micro-MaTch series connector.

Positions: 6
Pitch: 0.100" (2.54mm)
Insulation Material: Black Polyamide (PA46), Nylon 4/6, Glass Filled
RoHS Compliant: Yes
Supply and Demand Status: Balanced
Application: Telecommunications, Computers, Consumer Electronics
