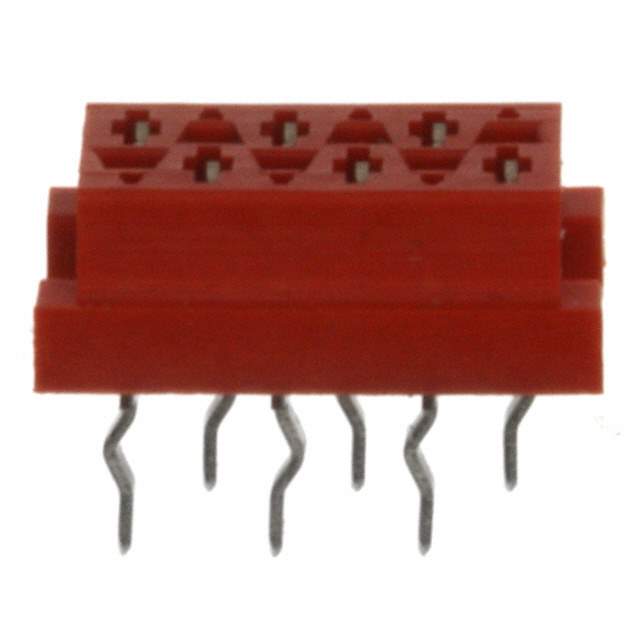

Same model may have multiple batches, images only for reference.

7-215079-6

Name: 7-215079-6
Brand: TE Connectivity
SKU: 421371
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	7-215079-6
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN FMALE-ON-BRD 6POS VERT T/H
Datasheet	7-215079-6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Packaging	AMMO PACKAGE
Status	Active
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	2.54mm
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Red
Insulation Height	0.157" (4.00mm)
Contact Length - Post	0.122" (3.10mm)
Temperature Range - Operating	-40°C to 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Voltage Rating	100VDC
Applications	Automotive, General Purpose
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Win Source Part Number	1007011-7-215079-6
Popularity	Medium
Supply and Demand Status	Balance
Application Field	Used in Industrial
Ultra Librarian 3D Model	Ultra Librarian 7-215079-6 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 1007011-7-215079-6 is a 6-position receptacle connector commonly used in automotive and general purpose applications.

Pitch: 2.54mm
Application: board-to-board or cable connections
Voltage Rating: 100VDC
Temperature Range: -40°C to 105°C
Recommendation: for use in industrial applications
