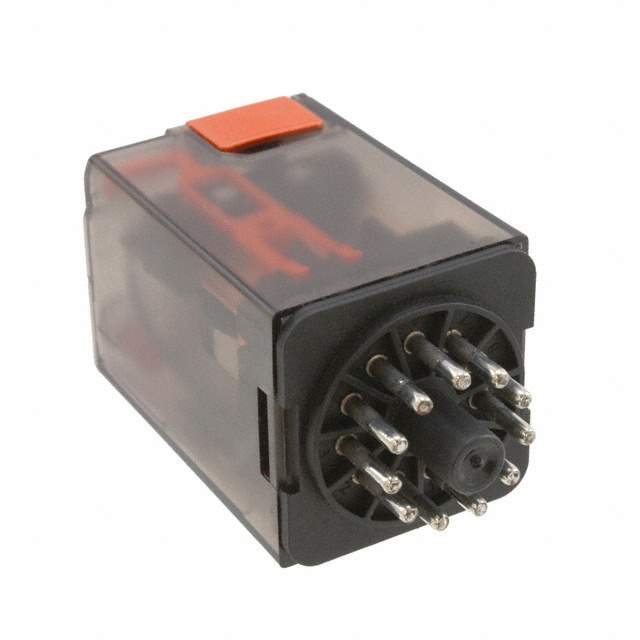

Same model may have multiple batches, images only for reference.

7-1393091-9

Name: 7-1393091-9
Brand: TE Connectivity
SKU: 1038489
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	7-1393091-9
Manufacturer	TE Connectivity
Catalog	Signal Relays, Up to 2 Amps
Description	Electromechanical Relay 24VDC 475Ohm 20A 3PDT(35.5x35.6x57)mm Plug-In General Purpose Relay
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Coil Current	50 mA
Coil Power	1.2 W
Coil Resistance	475 Ω
Coil Type	Non-Latching
Coil Voltage (DC)	24 V
Contact Current Rating	10 A
Contact Material	Silver
Contact Voltage Rating (AC)	240 V
Depth	35.6 mm
Dropout Voltage	2.4 V
ELV	Compliant
Height	57 mm
Lead Free	Not Applicable
Length	35.5 mm
Max Current Rating	10 A
Maximum Operating Temperature	60 °C
Max Voltage Rating (AC)	400 V
Min Operating Temperature	-40 °C
Mount	Plug-In, Socket, Socketable
Number of Pins	11
Operate Time	15 ms
Packaging	Bulk
Radiation Hardening	No
Ratings	IP40
REACH SVHC	Unknown
Relay Type	General Purpose
Release Time	10 ms
RoHS	Compliant
Switching Capacity	2.5 kW
Switching Current	10 A
Termination	Plug
Throw Configuration	3PDT
Voltage Rating (AC)	400 V
Weight	80.059053 g
Width	35.5 mm
Win Source Part Number	1038489-7-1393091-9
Categories	Signal Relays,Up to 2 Amps
Manufacturer	TE Connectivity
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 7-1393091-9 CAD Model

Alternative Products

Description

The TE Connectivity 1038489-7-1393091-9 is a general-purpose relay designed for use in a range of applications.

Termination: Plug
Contact Material: Silver
Coil Resistance: 475 Ω
Coil Current: 50 mA
Contact Current Rating: 10 A
Temperature Range: -40°C to 60°C
