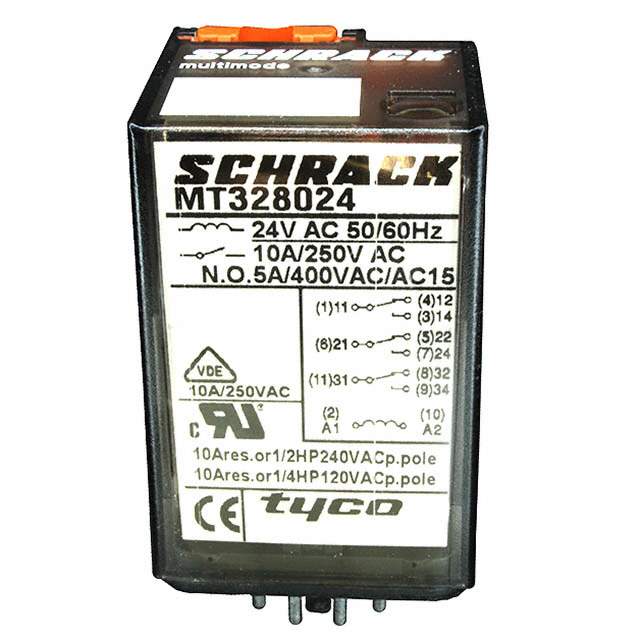

7-1393090-0 Real Image
Same model may have multiple batches, images only for reference.

7-1393090-0

Part No 7-1393090-0
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 115VAC 2KOhm 20A DPDT(35.5x35.6x57)mm Plug-In General Purpose Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Power 2.37 W
Coil Resistance 2 kΩ
Coil Type Non-Latching
Coil Voltage (AC) 115 V
Contact Current Rating 10 A
Contact Material Silver
Contact Voltage Rating (AC) 240 V
Current Rating 10 A
Depth 35.6 mm
Dropout Voltage 34.5 V
ELV Compliant
Height 57 mm
Lead Free Not Applicable
Length 35.5 mm
Max Current Rating 20 A
Maximum Operating Temperature 50 °C
Max Voltage Rating (AC) 400 V
Min Operating Temperature -40 °C
Mount Socket, Socketable
Number of Pins 8
Operate Time 15 ms
Packaging Bulk
Power Consumption 1.2 W
Radiation Hardening No
Relay Type General Purpose
Release Time 10 ms
RoHS Compliant
Termination Plug
Throw Configuration DPDT
Voltage Rating (AC) 400 V
Weight 80.059053 g
Width 35.5 mm
Win Source Part Number 997627-7-1393090-0
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 7-1393090-0 CAD Model

Description

The TE Connectivity Plug is a high-quality product that comes in bulk packaging.

  • Termination: Plug
  • Contact Material: Silver
  • Current Rating: 10A
  • Length: 35.5mm
  • Coil Resistance: 2kΩ
  • Contact Current Rating: 10A
  • Operate Time: 15ms
  • Relay Type: General Purpose
  • Coil Type: Non-Latching
  • Release Time: 10ms
  • Coil Power: 2.37W
  • Height: 57mm
  • Weight: 80.059053g
  • Number of Pins: 8
  • Width: 35.5mm
  • Popularity: Low
  • Maximum Operating Temperature: 50°C
  • Depth: 35.6mm
