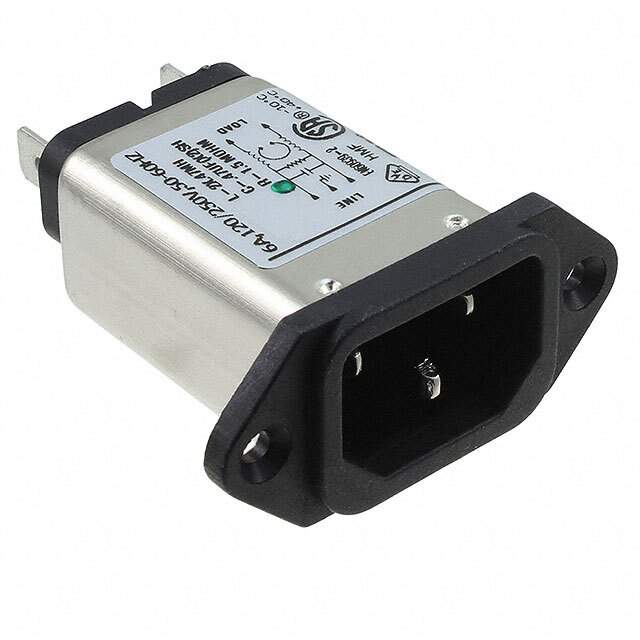

6EBH1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr TE Connectivity Corcom Filters
Series EBH, Corcom
Package Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades
Current - IEC 6A
Voltage - IEC 120/250VAC
Current - UL 6A
Voltage - UL 250VAC
Filter Type Filtered (EMI, RFI) - Commercial
Accomodates a Fuse No
Number of Positions 3
Mounting Type Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Features Front or Rear Side Mount
Panel Cutout Dimensions Variable Size
Approval Agency CSA, UL, VDE
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.30.8000
Other Names -6EBH1-SI,1609003-3,6609003-3,CCM2027,6EBH1-NDR,6EBH1-ND
Standard Package 40
Win Source Part Number 1045764-6EBH1
Ultra Librarian 3D Model Ultra Librarian 6EBH1 CAD Model

Description

The 6EBH1 is a power entry connector component manufactured by TE Connectivity Corcom Filters.

  • Category: connectors
  • Type: filtered (EMI, RFI) commercial component
  • Current Rating: 6A
  • Voltage Rating IEC: 120/250VAC
  • Voltage Rating UL: 250VAC
  • Connector Type: male blade receptacle
  • Termination: quick connect of 0.250" (6.3mm)
  • Mount Feature: front or rear-side mount
  • Mounting: panel mountable with flange
  • Panel Cutout: variable dimension
  • Panel Thickness: no specific panel thickness
  • Alternative Cross-Reference Part Numbers: 1-480706-0, 1-480700-0, 66099-4, 39-01-2081, 43020-0400, 43640-03016609003-3
  • Approvals: CSA, UL, and VDE
