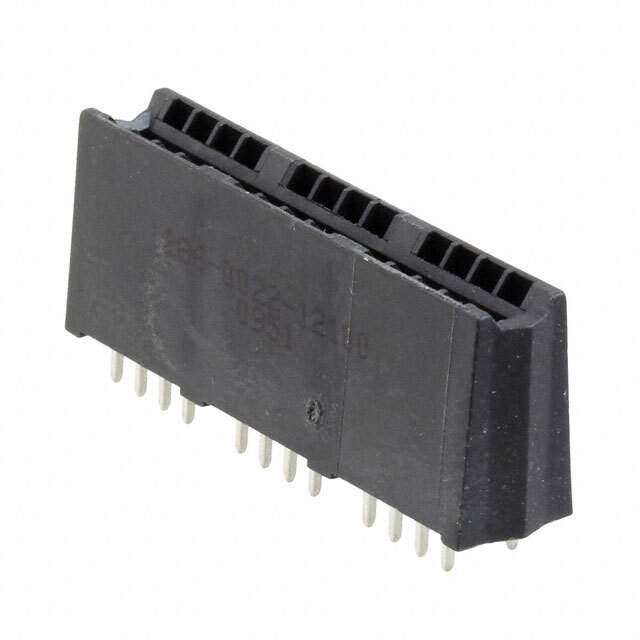

6651193-1 Real Image
Same model may have multiple batches, images only for reference.

6651193-1

Part No 6651193-1
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FEMALE 24POS GOLD / 24 Position Female Connector Non Specified - Dual Edge Gold Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr TE Connectivity AMP Connectors
Series Crown Edge, Elcon
Package Bulk
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 4; 4; 4
Number of Positions 24
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Read Out Dual
Mounting Type Through Hole
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Material - Insulation Thermoplastic, Glass Filled
Base Product Number 6651193
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 286-0022-12300
Standard Package 192
Win Source Part Number 1039675-6651193-1
Ultra Librarian 3D Model Ultra Librarian 6651193-1 CAD Model

Description

The Crown Edge Elcon series connector is a female card edge connector with 24 positions.

  • Positions: 24
  • Connector Type: Female Card Edge Connector
  • Series: Crown Edge Elcon
  • Card Type: Non-Specified Dual Edge
  • Positions/Bay/Row: 4
  • Card Thickness: 0.062" (1.57mm)
  • Mounting Type: Through Hole
  • Termination: Solder
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Insulation Material: Thermoplastic and Glass Filled
  • Color: Black
  • Packaging: Bulk
  • Standard Package: 192
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Manufacturer: TE Connectivity AMP Connectors
  • Other Names: 286-0022-12300
