Same model may have multiple batches, images only for reference.

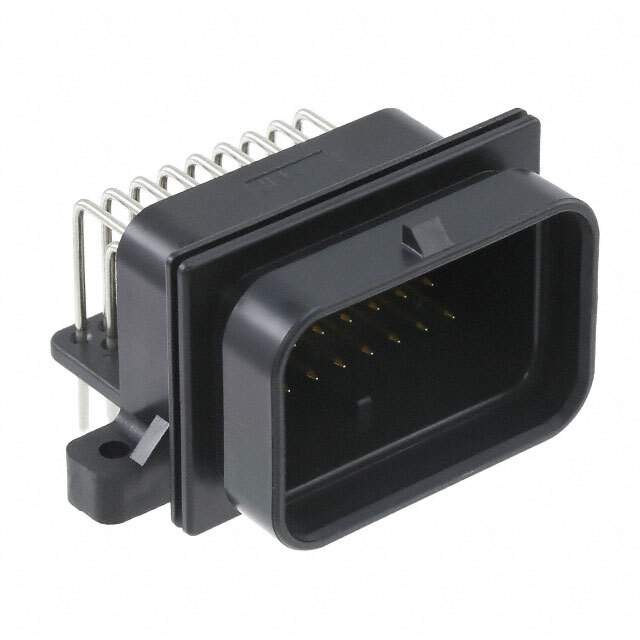

6437288-1 Real Image
Same model may have multiple batches, images only for reference.

6437288-1

Part No 6437288-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 34POS 3MM / Connector Header Through Hole, Right Angle 34 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Superseal
Package Tube
Connector Type Receptacle
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 34
Number of Rows 4
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.157" (4.00mm)
Insulation Height 1.079" (27.40mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyester
Features Mounting Flange, Sealed
Temperature Range - Operating -40°C ~ 125°C
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Applications Automotive
Base Product Number 6437288
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 6437288-1-ND,A124384,-6437288-1-LSI,-6437288-1-CSI,-6437288-1-SI
Standard Package 14
Win Source Part Number 1187985-6437288-1
Ultra Librarian 3D Model Ultra Librarian 6437288-1 CAD Model

Description

TE Connectivity AMP Connectors' Superseal 6437288-1 is a receptacle connector with a locking ramp, 4 wall shrouding, and a right-angle, through-hole mounting type.

  • Positions: 34
  • Gender: Male pins
  • Contact Material: Brass
  • Contact Finish: Gold
  • Voltage Rating: 250V
  • Application: Automotive
  • Win Source Part Number: 1187985-6437288-1
  • Alternative Part Number: 6437288-1
