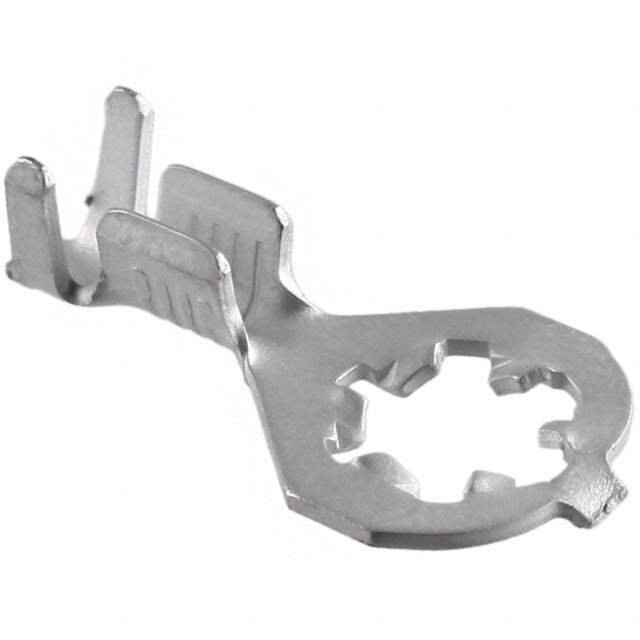

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.025" (0.64mm)
Width - Outer Edges 0.445" (11.30mm)
Length - Overall 0.772" (19.61mm)
Mounting Free Hanging (In-Line)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Features Inner Teeth, Serrated Termination
Contact Material Steel
Contact Finish Tin
Insulation Diameter 0.105" ~ 0.145" (2.67mm ~ 3.68mm)
Base Product Number 63482
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 63482-1-ND,A100786CT,2266-63482-1TR,-63482-1-SI,634821,A100786TR
Standard Package 8,000
Win Source Part Number 1333586-63482-1
Ultra Librarian 3D Model Ultra Librarian 63482-1 CAD Model

Description

The TE Connectivity AMP Connectors 1333586-63482-1 is a circular ring connector that is designed for use with 14-18 AWG wires.

  • Termination Feature: Inner teeth and serrated
  • Termination: Crimp
  • Material: Steel
  • Contact Finish: Tin
  • Insulated: No
  • Insulation Diameter: 0.105" ~ 0.145" (2.67mm ~ 3.68mm)
  • Family: Terminals
  • Package: 8,000
